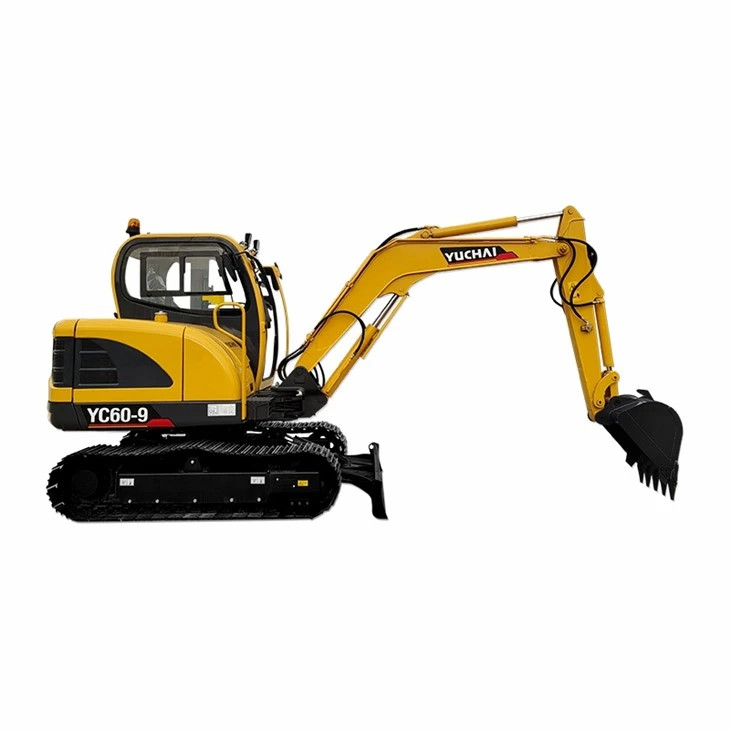

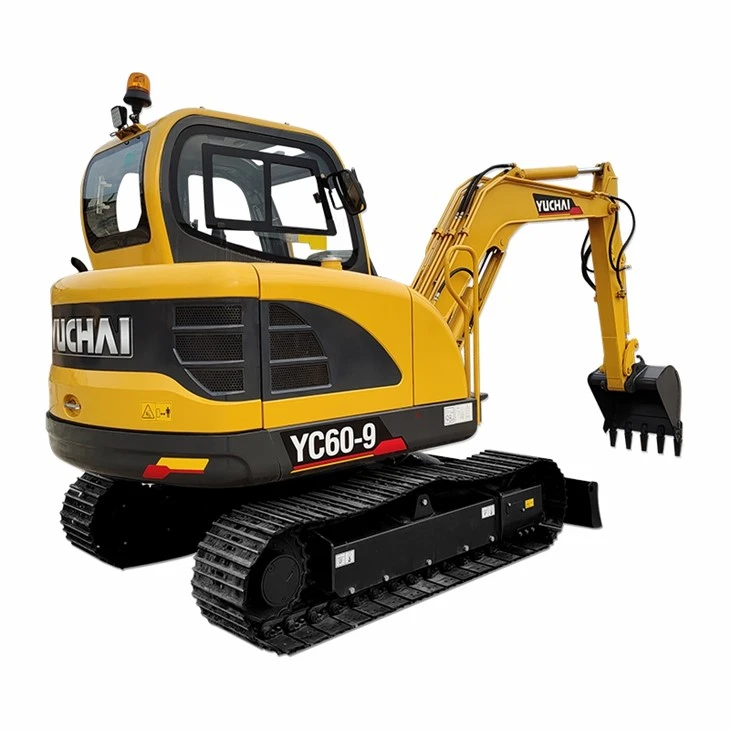

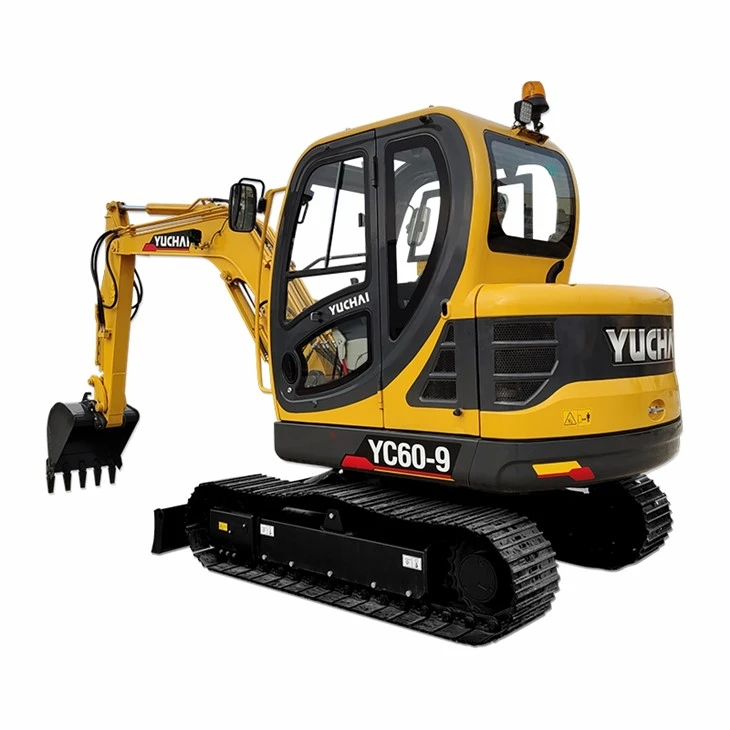

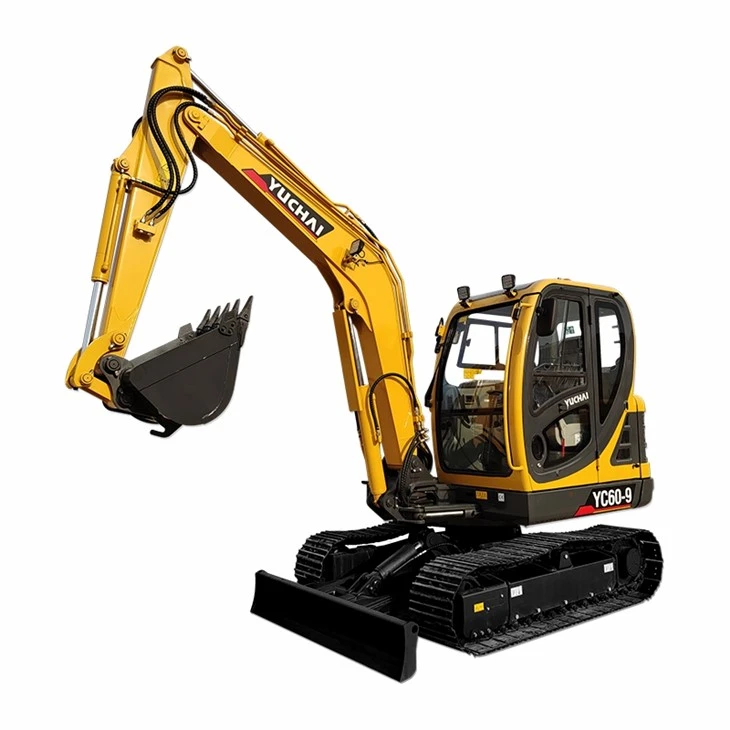

Yuchai YC60 mini excavator
1.Structural Reliability
2.Excellent Performance
3.Fuel saving and high efficiency
4.Brand new large cabin
5.Convenient maintenance
6.Ability to Level Soil Reaches Over 1.5 Meters
Performance Parameters
|
Excavator Model |
YC60(new) |
|
|
Basic Parameter |
||
|
Machine weight |
kg |
6000 |
|
Bucket capacity |
m³ |
0.23 |
|
Width of bucket |
mm |
775 |
|
Performance Parameter |
||
|
Engine model |
|
Kubota V2607 |
|
Engine power |
kW/rpm |
30.7/2200 /35/2200 |
|
Max. Gradeability |
|
35° |
|
Max. digging force of arm |
kN |
27.5 |
|
Max. digging force of bucket |
kN |
36.6 |
|
Traveling speed |
km/h |
3.6/2.2 |
|
Max. hauling force |
kN |
46.5 |
|
Slewing speed of platform |
rpm |
11~13.5 |
|
Operating Parameter |
||
|
Max. digging height |
mm |
5900 |
|
Max. digging depth |
mm |
3935 |
|
Max. digging radius |
mm |
6520 |
|
Max. digging radius on ground level |
mm |
6385 |
|
Max. dumping height |
mm |
4030 |
|
Min. slewing radius |
mm |
2685 |
|
Max. vertical digging depth |
mm |
3370 |
|
Max. dozer balde heigh |
mm |
|
|
Mzx. dozer blade depth |
mm |
|
|
Transportation Dimension |
||
|
Overall length |
mm |
6085 |
|
Overall width |
mm |
1962 |
|
Overall height |
mm |
2635 |
|
Other Parameter |
||
|
Width of undercarriage |
mm |
1920 |
|
Length of track |
mm |
2600 |
|
Width of track |
mm |
400 |
|
Height between undercarriage and ground |
mm |
335 |
|
Height between platform and ground |
mm |
720 |
|
Platform tail turning radius |
mm |
1670 |
|
Length to center of rollers |
mm |
2060 |
|
Fuel tank capacity |
L |
122 |
|
Hydraulic oil tank capacity |
L |
77 |
|
Track gauge |
|
1520 |
|
Working Pressure |
Mpa |
25 |
|
Ground Contact Pressure |
kPa |
|
|
Arm length |
mm |
1699.2 |
|
Boom length |
mm |
3118 |
|
Steering head angle |
|
-- |
|
Flow rate |
L/Min |
138.6 |
