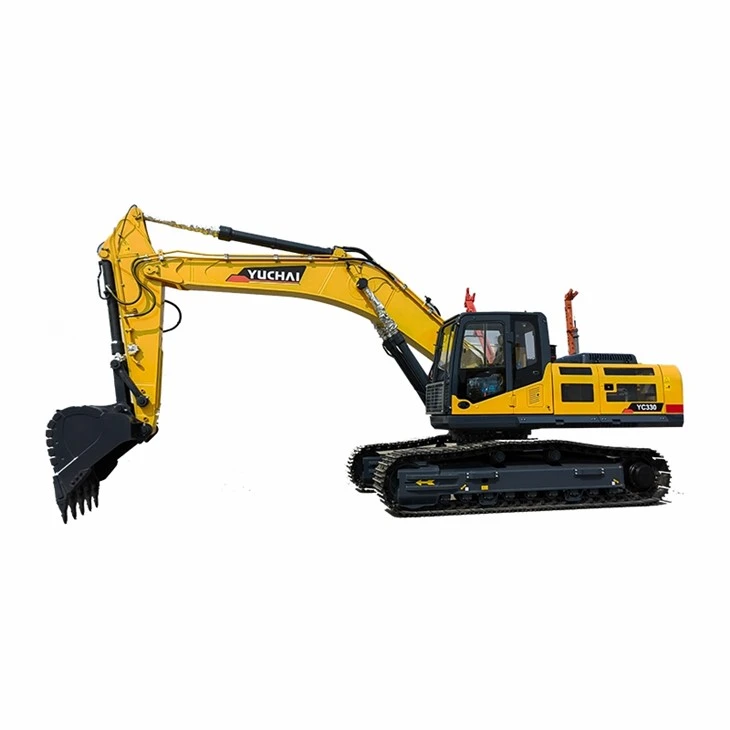

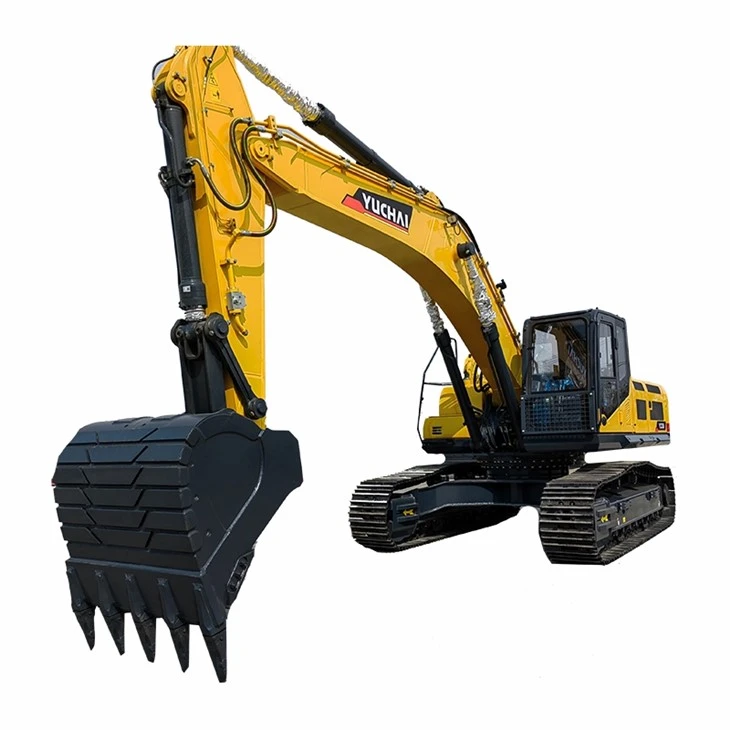

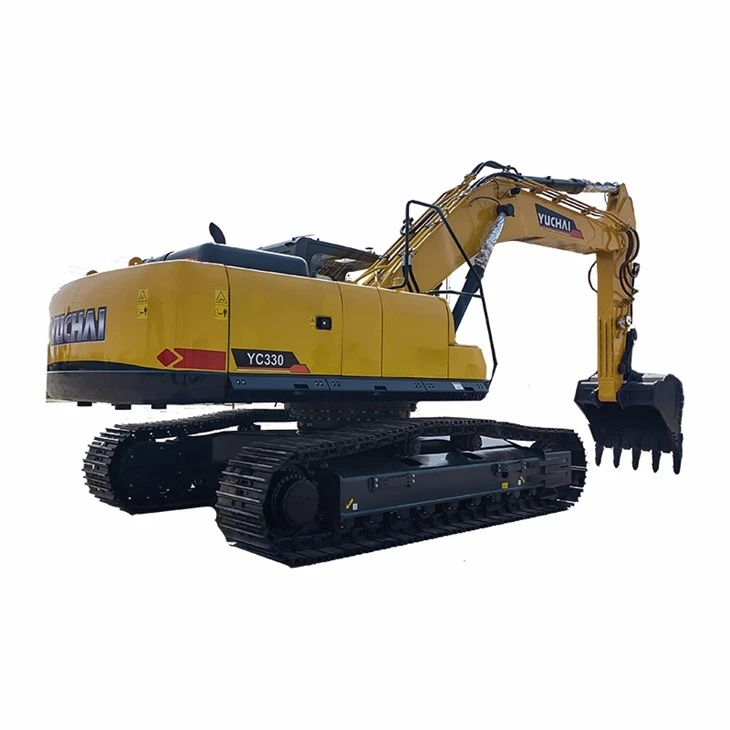

Yuchai YC330 excavator
1.Structural Reliability
2.Excellent Performance
3.Fuel saving and high efficiency
4.Brand new large cabin
5.Comfortable driving experience
6.Convenient maintenance
Performance Parameters
|
Item |
UIit |
YC330 |
|
Operating Weight |
kg |
31380 |
|
Standard Bucket Capacity (SAE) |
m³ |
1.6 |
|
Engine |
||
|
Model |
- |
Cummins QSB7 |
|
Rated Power |
kW/rpm |
169/2050 |
|
Max. Torque |
N.m/rpm |
895/1300 |
|
Hydraulic System |
||
|
Operating Pressure |
MPa |
34.3 |
|
Max. Flow Rate |
L/min |
2×266 |
|
Working Performance |
||
|
Slewing Speed |
rpm |
10 |
|
Travel Speed (High/Low) |
km/h |
5.1/3.1 |
|
Max. Digging Force(Bucket) |
KN |
225 |
|
Max. Digging Force (Arm) |
KN |
182 |
|
Gradeability |
% |
70 |
|
Max.Traction Force |
KN |
273 |
|
Travel Device |
||
|
Track Length(K) |
mm |
4950 |
|
J Wheel base oftrack shoe |
mm |
4030 |
|
M Track Gauge |
mm |
2680 |
|
N Track Shoe Width |
mm |
600 |
|
Ground Pressure |
kgf/cm² |
0.594 |
|
H Minimum Ground Clearance (H) |
mm |
471 |
|
Tank Capacity |
||
|
Fuel Tank |
L |
520 |
|
Hydraulic Tank |
L |
210 |
|
Dimensions |
||
|
A Overall Length |
mm |
10686 |
|
B Overall Width |
mm |
3280 |
|
C Overall Height |
mm |
3546 |
|
F Counterweight Ground Clearance |
mm |
1193 |
|
Rear Length |
mm |
3205 |
|
D Upper Width |
mm |
3060 |
|
E Cab Height |
mm |
3145 |
|
Rear Swing Radius |
mm |
3250 |
|
Boom Length Standard |
mm |
6200mm |
|
Arm Length Standard |
2650mm |
|
|
Arm Length Option |
mm |
|
|
A Max. Digging Reach |
mm |
10233mm |
|
A' Ground Max. Digging Distance |
mm |
10028mm |
|
B Max. Digging Depth |
mm |
6536mm |
|
B' Max. Effective Digging Depth |
mm |
6331mm |
|
C Max. Vertical Digging Depth |
mm |
4758mm |
|
D Max. Digging Height |
mm |
9617mm |
|
E Max. Dumping Height |
mm |
6666mm |
|
F Minimum Swing Radius |
mm |
4256mm |
