Guangxi Yuchai International Trade Co., Ltd. is one of the leading manufacturers and suppliers of yuchai yc485 hydraulic excavator in China. Please feel free to wholesale bulk high quality products made in China here and get quotation from our factory. We also accept customized orders.

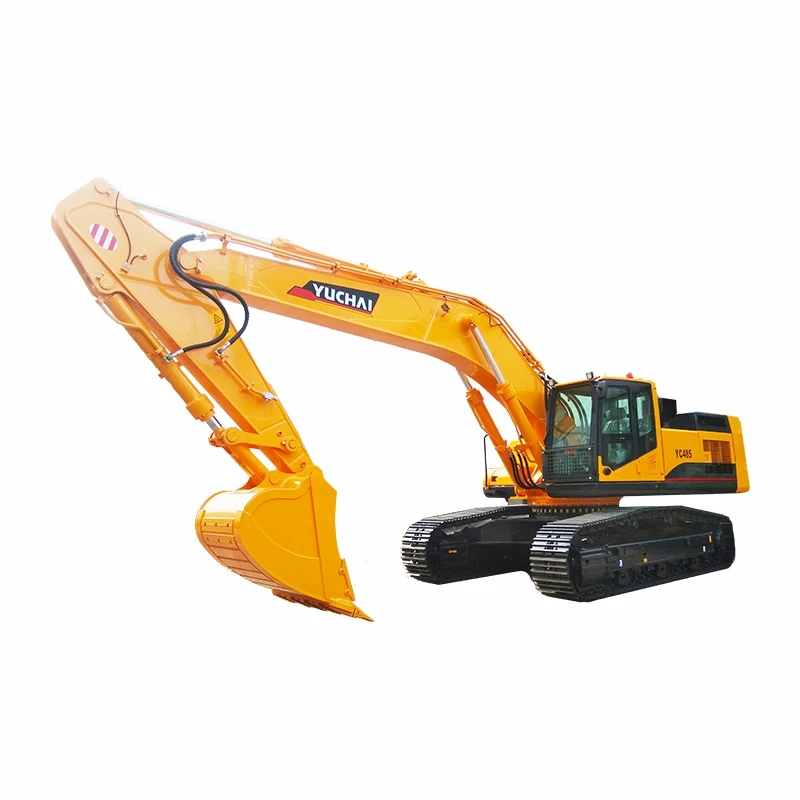

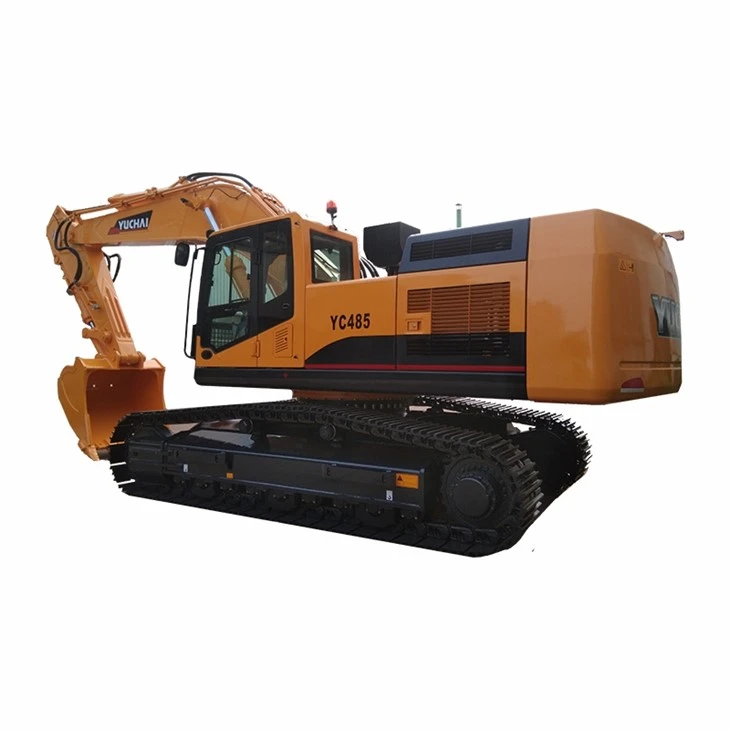

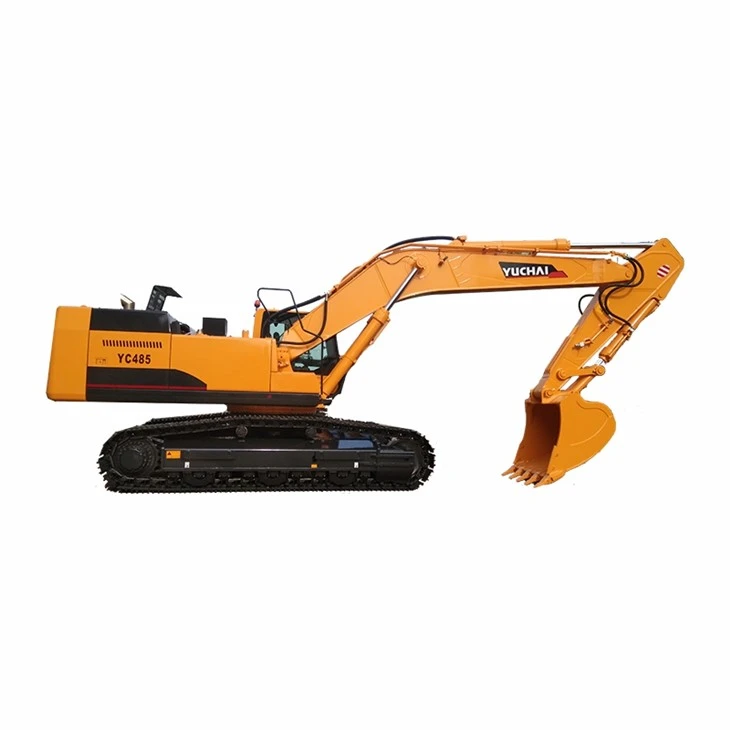

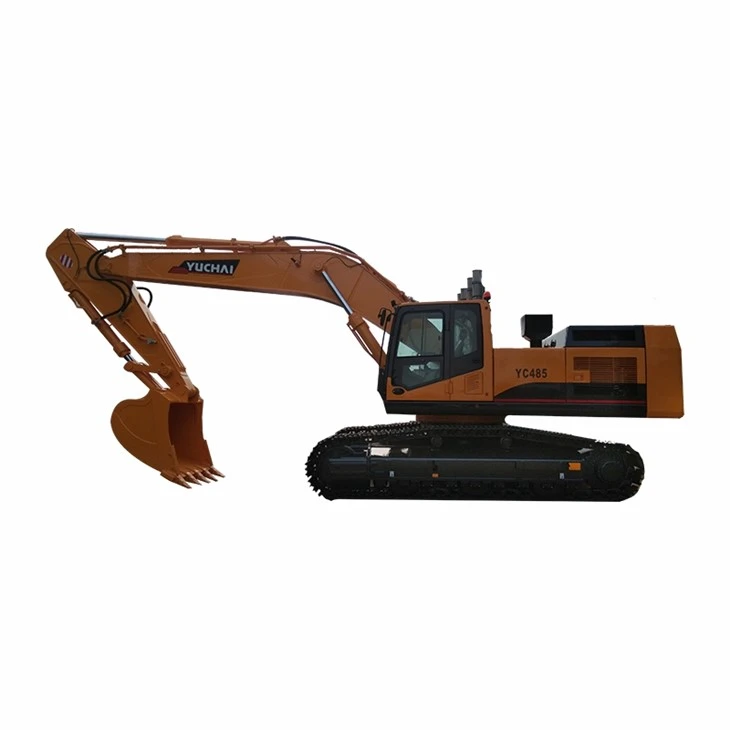

Yuchai YC485 Hydraulic excavator
1.Equipped with new generation
2.Specialdesigned Tier Ill engine for excavator
3.Lower fuel cost, Stronger power
Performance Parameters
| Item | UIit | YC485 |
| Operating Weight | kg | 47000 |
| Standard Bucket Capacity (SAE) | m³ | 2.3 |
| Engine | ||
| Model | - | Cummins QSM 11 |
| Rated Power | kW/rpm | 280/2100 |
| Max. Torque | N.m/rpm | 1898/1400 |
| Hydraulic System | ||
| Operating Pressure | MPa | 34.3 |
| Max. Flow Rate | L/min | 360*2 |
| Working Performance | ||
| Slewing Speed | rpm | 8.9 |
| Travel Speed (High/Low) | km/h | 4.9/2.7 |
| Max. Digging Force(Bucket) | KN | 256 |
| Max. Digging Force (Arm) | KN | 212 |
| Gradeability | % | 35 |
| Max.Traction Force | KN | 368 |
| Travel Device | ||
| Track Length(K) | mm | 5390 |
| J Wheel base oftrack shoe | mm | 4360 |
| M Track Gauge | mm | 2890 |
| N Track Shoe Width | mm | 600 |
| Ground Pressure | kgf/cm² | 88.5 |
| H Minimum Ground Clearance (H) | mm | 722 |
| Tank Capacity | ||
| Fuel Tank | L | 650 |
| Hydraulic Tank | L | 335 |
| Dimensions | ||
| A Overall Length | mm | 12260 |
| B Overall Width | mm | 3490 |
| C Overall Height | mm | 3755 |
| F Counterweight Ground Clearance | mm | 1269 |
| Rear Length | mm | 3735 |
| D Upper Width | mm | 3045 |
| E Cab Height | mm | 3280 |
| Rear Swing Radius | mm | 3735 |
| Boom Length Standard | ||
| Arm Length Standard | mm | 7060 |
| Arm Length Option | mm | 2900 |
| A Max. Digging Reach | mm | 11540 |
| A' Ground Max. Digging Distance | mm | 11325 |
| B Max. Digging Depth | mm | 7300 |
| B' Max. Effective Digging Depth | mm | 7300 |
| C Max. Vertical Digging Depth | mm | 3395 |
| D Max. Digging Height | mm | 10680 |
| E Max. Dumping Height | mm | 7428 |
| F Minimum Swing Radius | mm | 5015 |
