Guangxi Yuchai International Trade Co., Ltd. is one of the leading manufacturers and suppliers of yuchai u35 zero tail mini excavator in China. Please feel free to wholesale bulk high quality products made in China here and get quotation from our factory. We also accept customized orders.

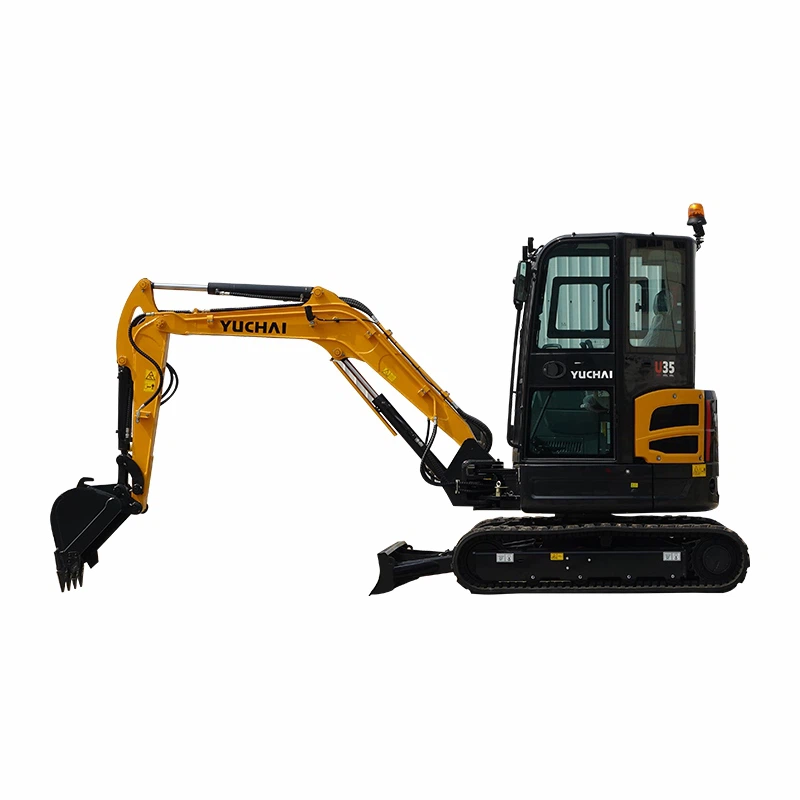

Yuchai U35 Zero Tail mini excavator
The Yuchai U35 is an outstanding excavator featuring a zero-tail swing design, ideal for navigating confined job sites and tight spaces. Its compact yet powerful construction ensures exceptional maneuverability without compromising performance. Whether working in narrow urban areas or tackling complex construction projects, this excavator guarantees maximum efficiency and productivity.
1.Optional Euro V/ Tier4 engine(Yanmar engine)
2.Load sensive hydraulic system
3.Superior working efficiency
4.Low fuel consumptionTilt-capable cabin
5.Standard with Rubber Tracks
Performance Parameters
|
Excavator Model |
U35 |
|
|
Basic Parameter |
||
|
Machine weight |
kg |
3860 |
|
Bucket capacity |
m³ |
0.12 |
|
Width of bucket |
mm |
617 |
|
Performance Parameter |
||
|
Engine model |
|
Yanmar 3TNV88 / 3TNV88F |
|
Engine power |
kW/rpm |
18.2/2200 / 20.4/2200 |
|
Max. Gradeability |
° |
35° |
|
Max. digging force of arm |
kN |
25.8 |
|
Max. digging force of bucket |
kN |
32.7 |
|
Traveling speed |
km/h |
4.80/3.10 |
|
Max. hauling force |
kN |
29 |
|
Slewing speed of platform |
rpm |
11～13 |
|
Operating Parameter |
||
|
Max. digging height |
mm |
5156 |
|
Max. digging depth |
mm |
3170 |
|
Max. digging radius |
mm |
5557 |
|
Max. digging radius on ground level |
mm |
5438 |
|
Max. dumping height |
mm |
3588 |
|
Min. slewing radius |
mm |
2260 |
|
Max. vertical digging depth |
mm |
2620 |
|
Max. dozer balde heigh |
mm |
373 |
|
Mzx. dozer blade depth |
mm |
425 |
|
Transportation Dimension |
||
|
Overall length |
mm |
4853 |
|
Overall width |
mm |
1800 |
|
Overall height |
mm |
2575 |
|
Other Parameter |
||
|
Width of undercarriage |
mm |
1800 |
|
Length of track |
mm |
2093 |
|
Width of track |
mm |
300 |
|
Height between undercarriage and ground |
mm |
347 |
|
Height between platform and ground |
mm |
572 |
|
Platform tail turning radius |
mm |
1014 |
|
Length to center of rollers |
mm |
1500 |
|
Fuel tank capacity |
L |
52 |
|
Hydraulic oil tank capacity |
L |
40 |
|
Track gauge |
mm |
1620 |
|
Working Pressure |
Mpa |
24 |
|
Ground Contact Pressure |
kPa |
33 |
|
Arm length |
mm |
1400 |
|
Boom length |
mm |
2500 |
|
Steering head angle |
° |
67.7° (L) / 53.7° ® |
|
Flow rate |
L/Min |
90 |
