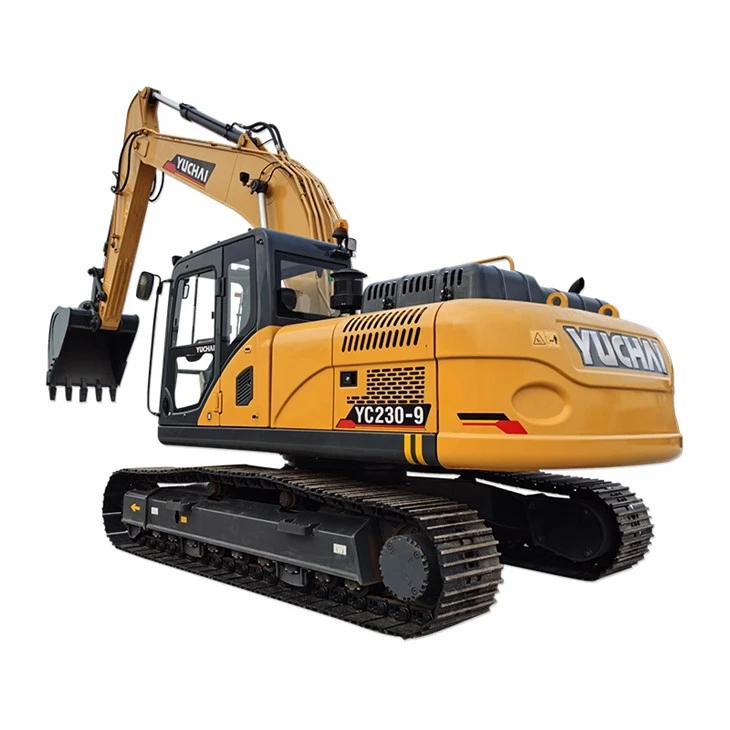

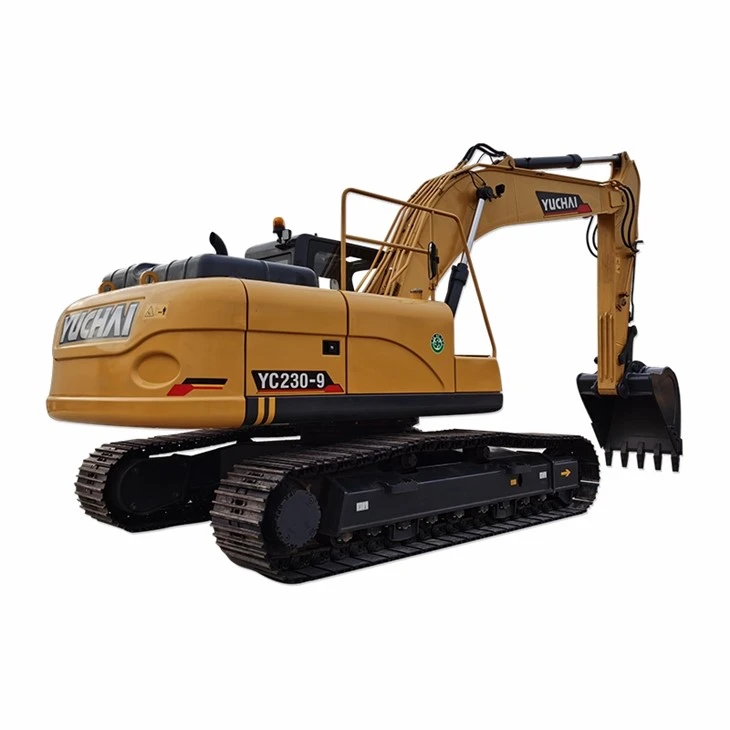

Yuchai YC230 excavator
1.Cummins Engine
2.Structural Reliability
3.Excellent Performance
4.High Efficiency
Performance Parameters
|
Excavator Model |
YC230 |
|
|
Basic Parameter |
||
|
Machine weight |
kg |
23100 |
|
Bucket capacity |
m³ |
1.08 |
|
Width of bucket |
mm |
1340 |
|
Performance Parameter |
||
|
Engine model |
|
Cummins QSB7 |
|
Engine power |
kW/rpm |
124/2050 |
|
Max. Gradeability |
|
35° |
|
Max. digging force of arm |
kN |
102 |
|
Max. digging force of bucket |
kN |
139.3 |
|
Traveling speed |
km/h |
3.4/5.2 |
|
Max. hauling force |
kN |
|
|
Slewing speed of platform |
rpm |
13~15 |
|
Operating Parameter |
||
|
Max. digging height |
mm |
9725 |
|
Max. digging depth |
mm |
6625 |
|
Max. digging radius |
mm |
9890 |
|
Max. digging radius on ground level |
mm |
9725 |
|
Max. dumping height |
mm |
6815 |
|
Min. slewing radius |
mm |
3410 |
|
Max. vertical digging depth |
mm |
6040 |
|
Max. dozer balde heigh |
mm |
|
|
Mzx. dozer blade depth |
mm |
|
|
Transportation Dimension |
||
|
Overall length |
mm |
9695 |
|
Overall width |
mm |
2990 |
|
Overall height |
mm |
3115 |
|
Other Parameter |
||
|
Width of undercarriage |
mm |
2990 |
|
Length of track |
mm |
4450 |
|
Width of track |
mm |
600 |
|
Height between undercarriage and ground |
mm |
470 |
|
Height between platform and ground |
mm |
1070 |
|
Platform tail turning radius |
mm |
2945 |
|
Length to center of rollers |
mm |
3655 |
|
Fuel tank capacity |
L |
350 |
|
Hydraulic oil tank capacity |
L |
210 |
|
Track gauge |
|
|
|
Working Pressure |
Mpa |
34.3 |
|
Ground Contact Pressure |
kPa |
|
|
Arm length |
mm |
|
|
Boom length |
mm |
|
|
Steering head angle |
|
|
|
Flow rate |
L/Min |
216x2 |
