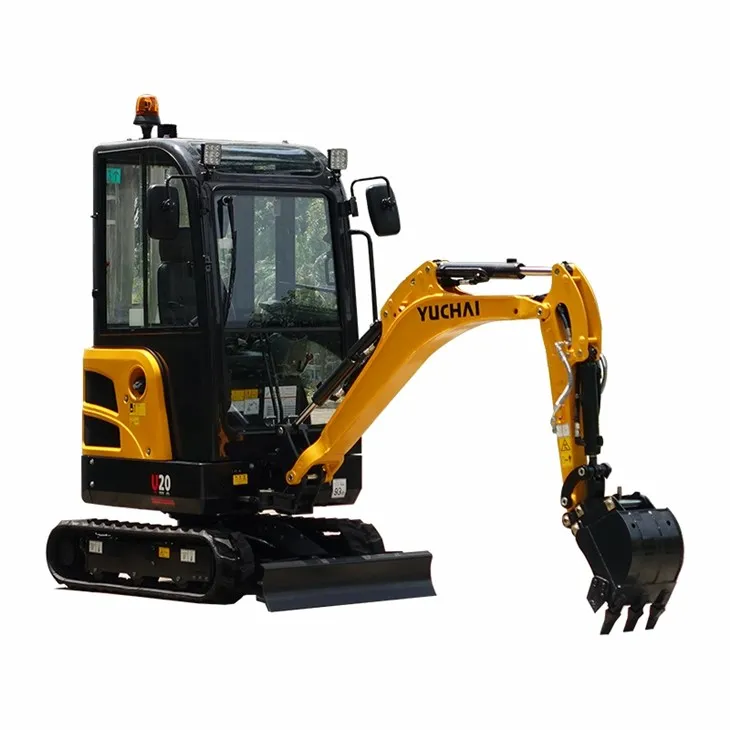

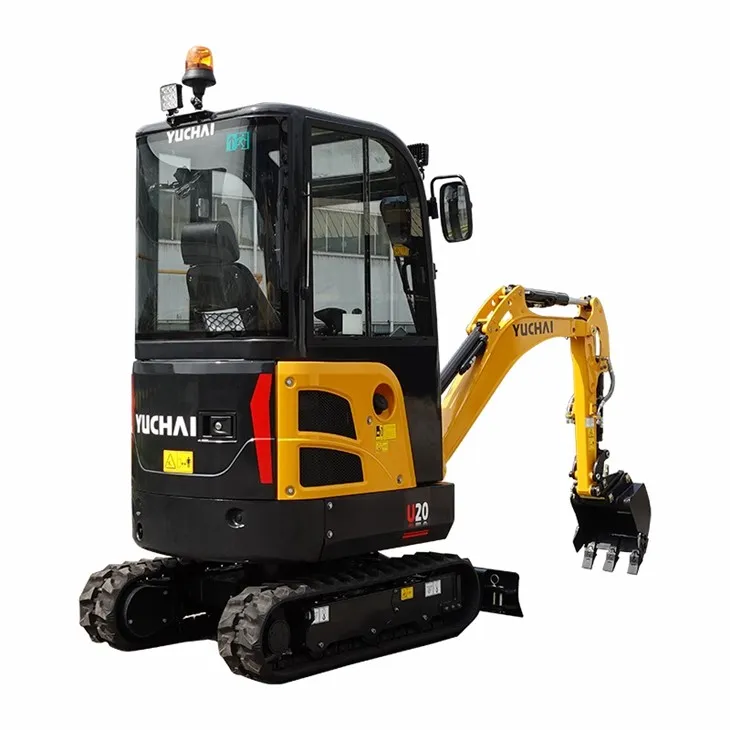

Yuchai U20 mini excavator
1.Euro V / Tier 4 Engine (Yanmar Engine)
2.Telescopic Chassis
3.Low Fuel Consumption
4.Swiftly Detachable Canopy
5.Easy Maintenance
Performance Parameters
|
Excavator Model |
U18 / U20 |
|
|
Basic Parameter |
||
|
Machine weight |
kg |
1800 (canopy) / 2000 (cabin) |
|
Bucket capacity |
m³ |
0.05 |
|
Width of bucket |
mm |
470 |
|
Performance Parameter |
||
|
Engine model |
|
Yanmar 3TNV76 / 3TNV80F |
|
Engine power |
kW/rpm |
14.5/2400 / 15.2/2500 |
|
Max. Gradeability |
|
30° |
|
Max. digging force of arm |
kN |
9.5 |
|
Max. digging force of bucket |
kN |
17.2 |
|
Traveling speed |
km/h |
2.0/4.0 |
|
Max. hauling force |
kN |
22 |
|
Slewing speed of platform |
rpm |
11 |
|
Operating Parameter |
||
|
Max. digging height |
mm |
3615 |
|
Max. digging depth |
mm |
2300 |
|
Max. digging radius |
mm |
4125 |
|
Max. digging radius on ground level |
mm |
4060 |
|
Max. dumping height |
mm |
2500 |
|
Min. slewing radius |
mm |
1690 |
|
Max. vertical digging depth |
mm |
1905 |
|
Max. dozer balde heigh |
mm |
245 |
|
Mzx. dozer blade depth |
mm |
245 |
|
Transportation Dimension |
||
|
Overall length |
mm |
3750 |
|
Overall width |
mm |
1080 |
|
Overall height |
mm |
2350 (Canopy) /2365 (Cabin) |
|
Other Parameter |
||
|
Width of undercarriage |
mm |
1080~1400 |
|
Length of track |
mm |
1585 |
|
Width of track |
mm |
230 |
|
Height between undercarriage and ground |
mm |
145 |
|
Height between platform and ground |
mm |
465 |
|
Platform tail turning radius |
mm |
700 |
|
Length to center of rollers |
mm |
1230 |
|
Fuel tank capacity |
L |
25 |
|
Hydraulic oil tank capacity |
L |
21.5 |
|
Track gauge |
|
850/1170 |
|
Working Pressure |
Mpa |
24 |
|
Ground Contact Pressure |
kPa |
30 |
|
Arm length |
mm |
950 |
|
Boom length |
mm |
1828 |
|
Steering head angle |
|
65° (L) / 55° ® |
|
Flow rate |
L/Min |
61.6 |
