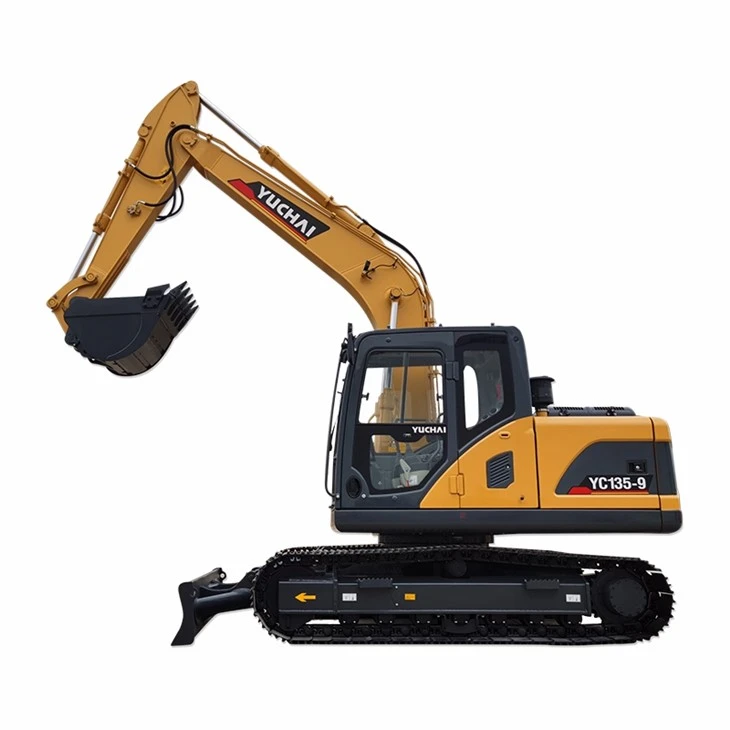

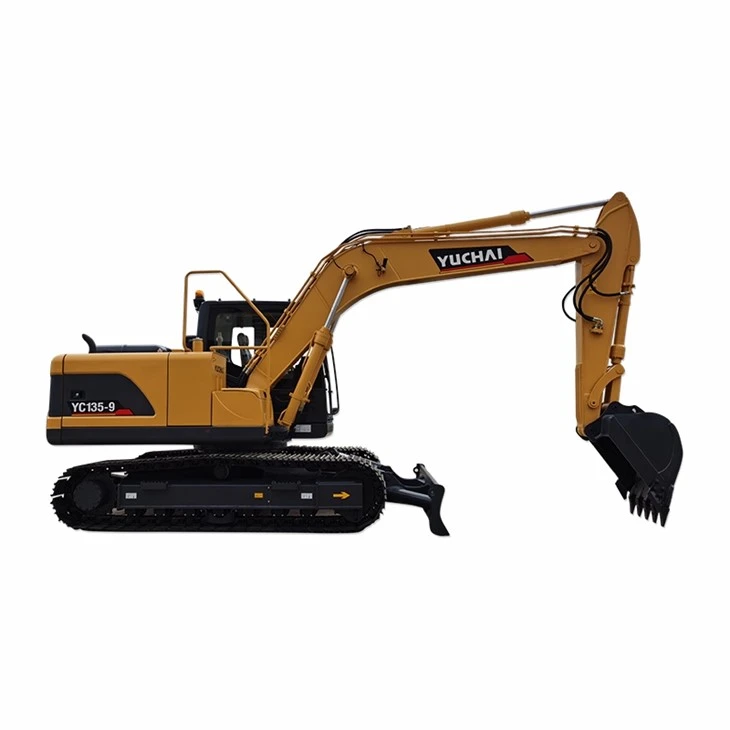

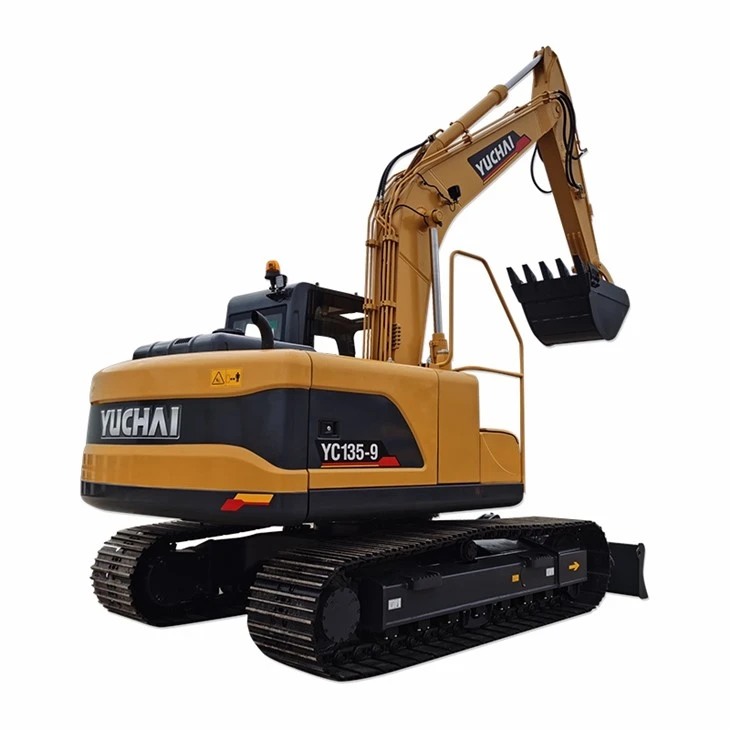

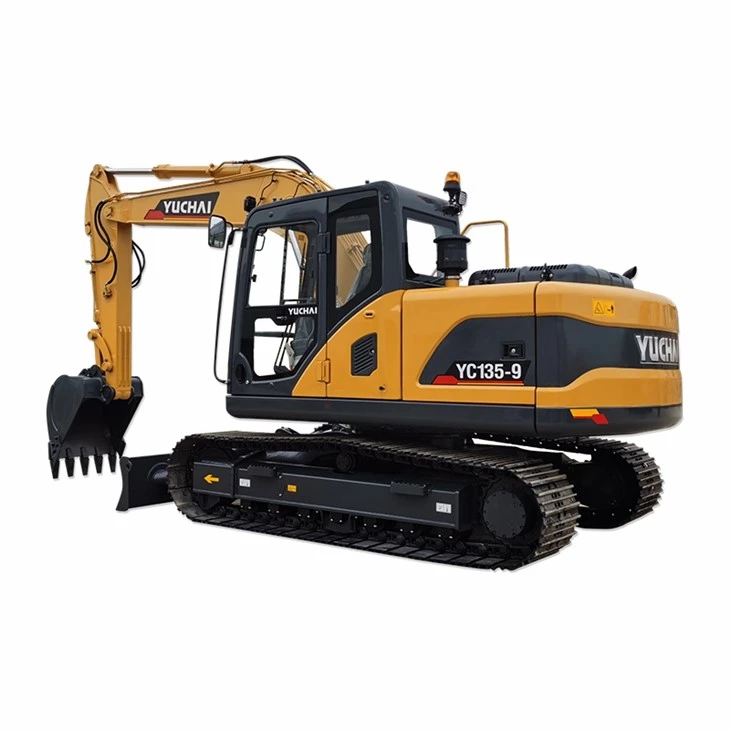

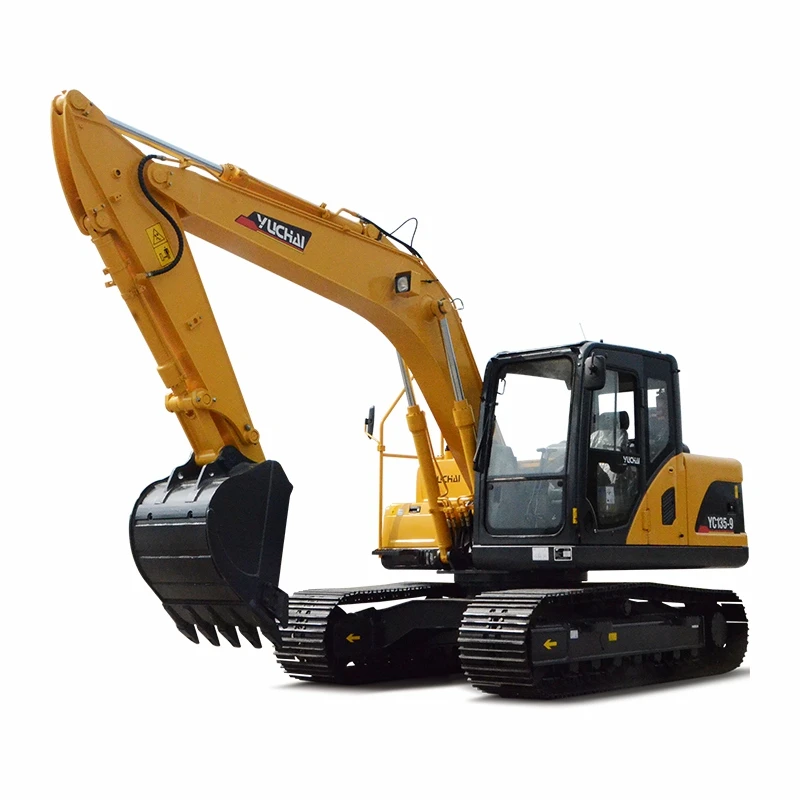

Yuchai YC135 excavator
1.Fuel saving and high efficiency
2.Large fuel tank of 270 liters
3.With one button start function
4.Steel casting have been used for thestress part of the working device
5.Brand New large cabin
6.Comfortable driving experience
7.Easy maintenance
Performance Parameters
|
Excavator Model |
YC135 |
|
|
Basic Parameter |
||
|
Machine weight |
kg |
13800 / 14740 (with dozer blade) |
|
Bucket capacity |
m³ |
0.52 |
|
Width of bucket |
mm |
934 |
|
Performance Parameter |
||
|
Engine model |
|
Yuchai 4DK / Cummins QSF 3.8 |
|
Engine power |
kW/rpm |
86/2200 |
|
Max. Gradeability |
|
35° |
|
Max. digging force of arm |
kN |
75.8 |
|
Max. digging force of bucket |
kN |
106 |
|
Traveling speed |
km/h |
5.0/3.1 |
|
Max. hauling force |
kN |
121 |
|
Slewing speed of platform |
rpm |
11 |
|
Operating Parameter |
||
|
Max. digging height |
mm |
8335 |
|
Max. digging depth |
mm |
5257 |
|
Max. digging radius |
mm |
8070 |
|
Max. digging radius on ground level |
mm |
7933 |
|
Max. dumping height |
mm |
5896 |
|
Min. slewing radius |
mm |
2561 |
|
Max. vertical digging depth |
mm |
4380 |
|
Max. dozer balde heigh |
mm |
|
|
Mzx. dozer blade depth |
mm |
|
|
Transportation Dimension |
||
|
Overall length |
mm |
7784 |
|
Overall width |
mm |
2600 |
|
Overall height |
mm |
2853 |
|
Other Parameter |
||
|
Width of undercarriage |
mm |
2600 |
|
Length of track |
mm |
3695 |
|
Width of track |
mm |
500 / 600 |
|
Height between undercarriage and ground |
mm |
415 |
|
Height between platform and ground |
mm |
919 |
|
Platform tail turning radius |
mm |
2315 |
|
Length to center of rollers |
mm |
2950 |
|
Fuel tank capacity |
L |
270 |
|
Hydraulic oil tank capacity |
L |
105 |
|
Track gauge |
|
2950 |
|
Working Pressure |
Mpa |
34.3 |
|
Ground Contact Pressure |
kPa |
|
|
Arm length |
mm |
2250 |
|
Boom length |
mm |
4600 |
|
Steering head angle |
|
|
|
Flow rate |
L/Min |
2×132.7 |
