Description
Technical Parameters

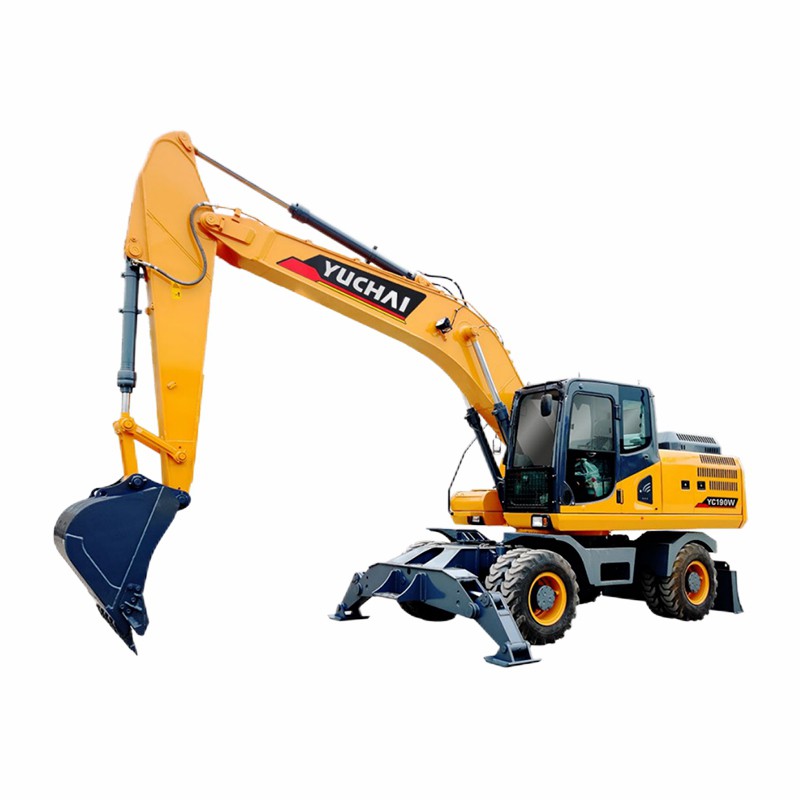

Yuchai YC190W wheel excavator
| Weight | ||
| Machine weight | kg | 18770 |
| Engine | ||
| Engine model | Yuchai | |
| power | HP | 140/2300 |
| Describe | Unit | Size |
| Overall length | mm | 9200 |
| Overall height | mm | 3320 |
| Overall width | mm | 2500 |
| Tail turning radius | mm | 2750 |
| Wheelbase | mm | 2850 |
| Track width | mm | |
| Turntable ground clearance | mm | 1249 |
| Ground clearance of rear axle | mm | |
| Fuel tank capacity | L | 350 |
| Hydraulic tank capacity | L | 215 |
| Describe | Unit | value |
| Max.digging radius | mm | 9100 |
| Max.digging height | mm | 9800 |
| Max.digging depth | mm | 5700 |
| Max.unloading height | mm | 6700 |
| Bucket digging force | kN | 122 |
| Stick digging force | kN | 81 |
| Bucket capacity | m³ | 0.9 |
| Walking speed | km/h | 35 |
| Hydraulic system flow | L/min | 2*200 |
| Climbing ability | 37.5° |
