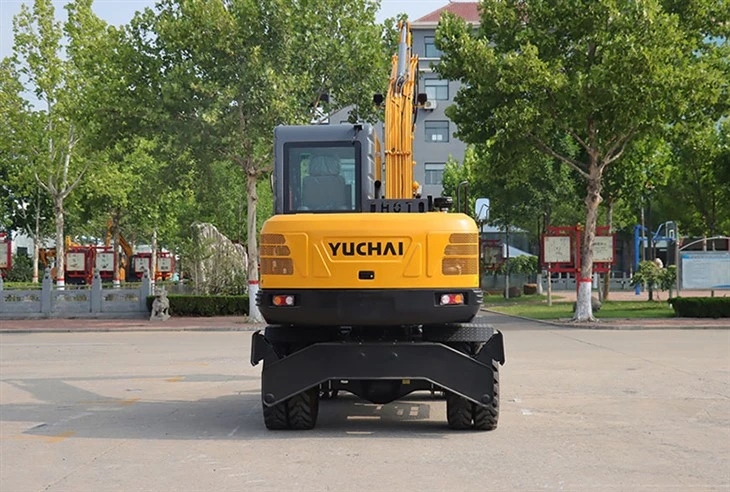

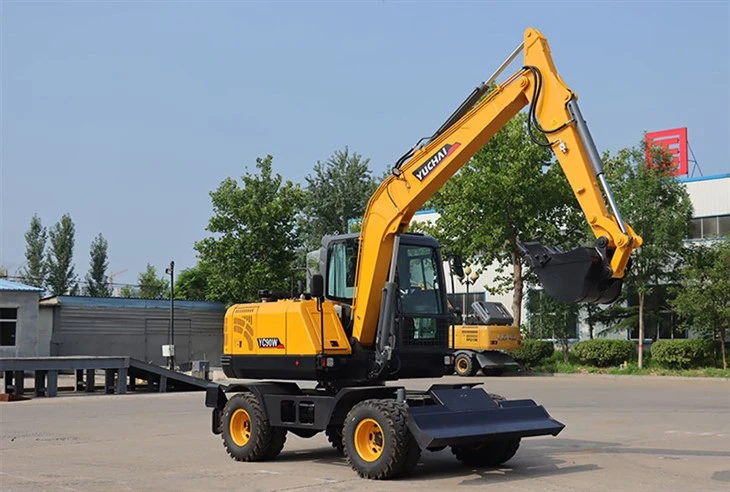

Yuchai YC80W wheel excavator

YC80W excavator is a new generation fu hydraulic wheel excavator independently developed by dime heavy industry. It adoptshigh-power and low fuel consumption environment-friendly standard engine, which ensures the strong power and power reserve of thewhole machine. The accurate matching of high-eiciency hydraulic system and bridge box ensures the random switching of working stateand running state.The hydraulic system of the whole machine is matched with imported hydraulic components, which has "high reliabilityAt the same time, it can provide a variety of special configurations to meet the needs of different countries and customers.

Technical Parameter

Weight
Machine weight	kg	6840
Engine
Engine model	YC4FA65-T300
Power	48kw 2200rpm/mir
Describe	Unit	Size
Shipping length	mm	6200
Total height during transportation	mm	2920
Overall width	mm	2150
Tail turning radius	mm	1855
Turntable width	mm	1930
Wheelbase	mm	2350
Track width	mm	1665
Height of bulldozer plate	mm	500
Lifting height of bulldozer	mm	380
Width of bulldozer plate	mm	2150
Support height of bulldozer	mm	60
Describe	Unit	Numerical value
Maximum excavation radius	mm	6385
Maximum excavation heigh	mm	6910
Maximum excavation depth	mm	3930
Maximum unloading height	mm	5160
Bucket digging force	kN	45
Digging force of stick	kN	22
Hydraulic system pressure	Mpa	26
Bucket capacity	m³	0.4
Walking speed	km/h	30
Hydraulic system flow	L/min	140
Slewing speed	r/min	12-13
Fuel tank capacity	L	120
Capacity of hydraulic oil tank	L	130
Gradient	%	≥60
