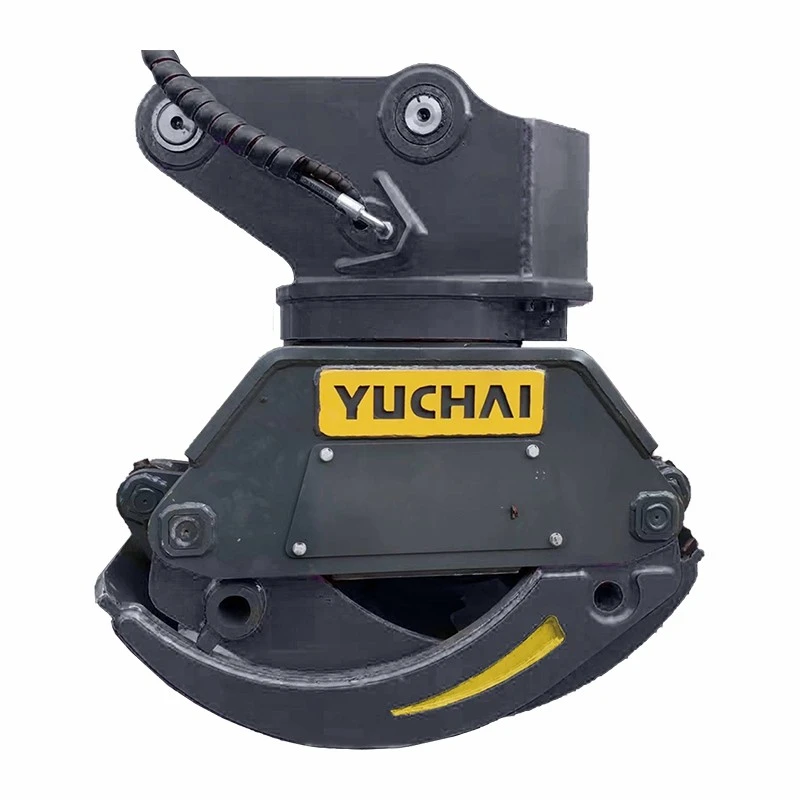

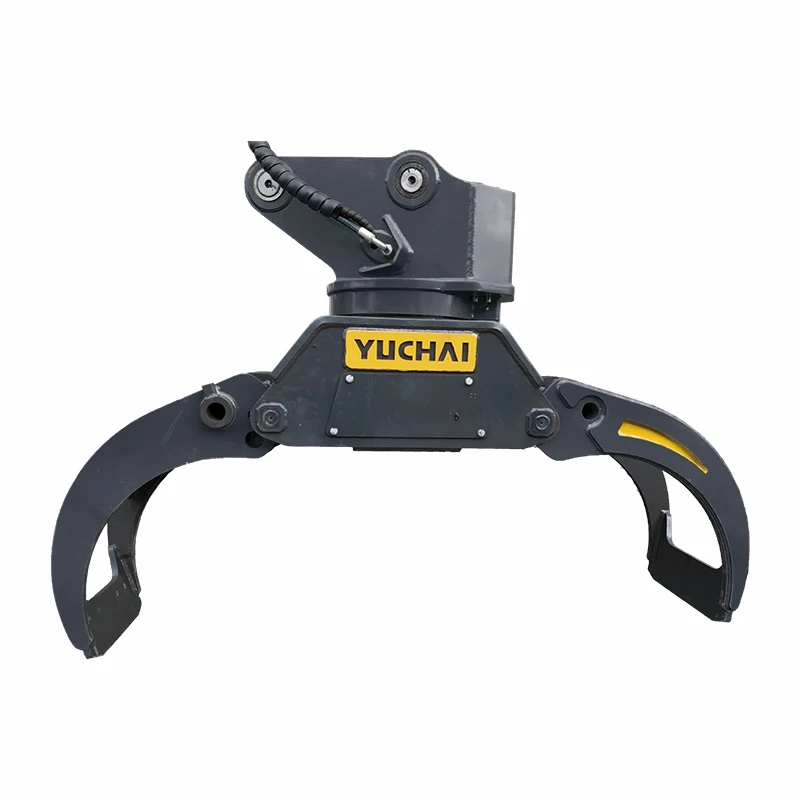

Yuchai Grapple FC160
Features:Using HG70D high-strength steel plate, light weight and wear-resistant;
The pin shaft is made of 42CrMo alloy steel with built-in oil channel,which has high strength and good toughness.
Using the vertical car motor rotation system, 360°rotation, with braking function.The oil cylinder adopts honing tube, which can bear higher pressure and have a longer life
Performance Parameters
|
Model |
Unit |
FC90 |
FC160 |
|
Weight |
kg |
450 |
650 |
|
Maximum clamping weigh |
kg |
1500 |
2500 |
|
Minimum arms round |
mm |
1670 |
1835 |
|
Min. grabbing diameter |
mm |
650 |
700 |
|
The largest arms round |
mm |
95 |
120 |
|
The height of the hold |
mm |
985 |
1080 |
|
Height at opening |
mm |
1240 |
1350 |
|
Clip blade width |
lon |
510 |
467 |
|
Suitable Excavator |
ton |
7~10 |
12~16 |
