Yuchai F40 Harvester Head
1.Multifunction
2.High-efficiency
3.Strong power
4.Low consumption
5.Easy operation
6.Simply maintenance

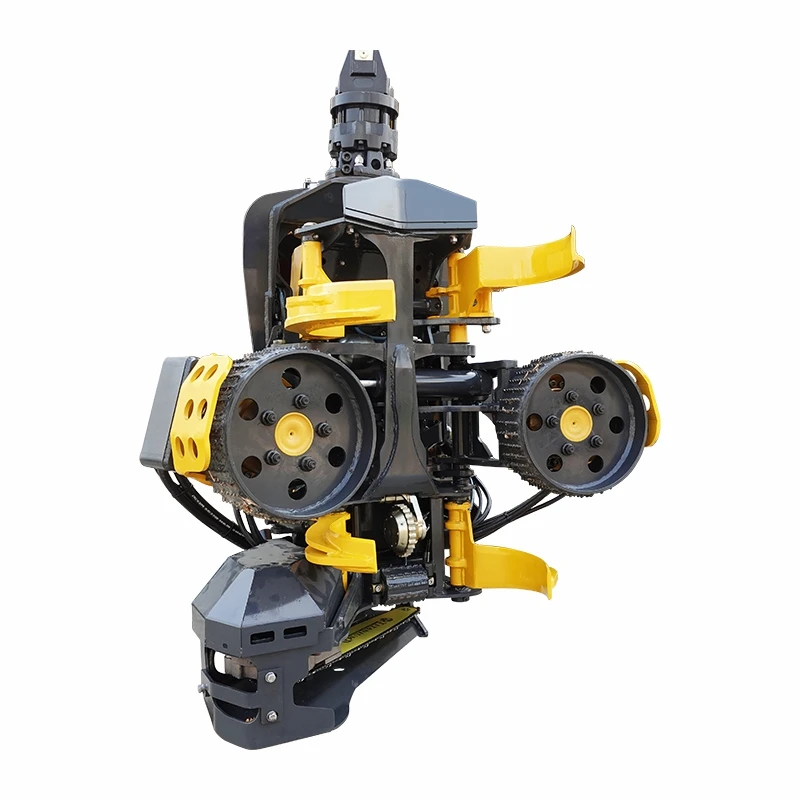

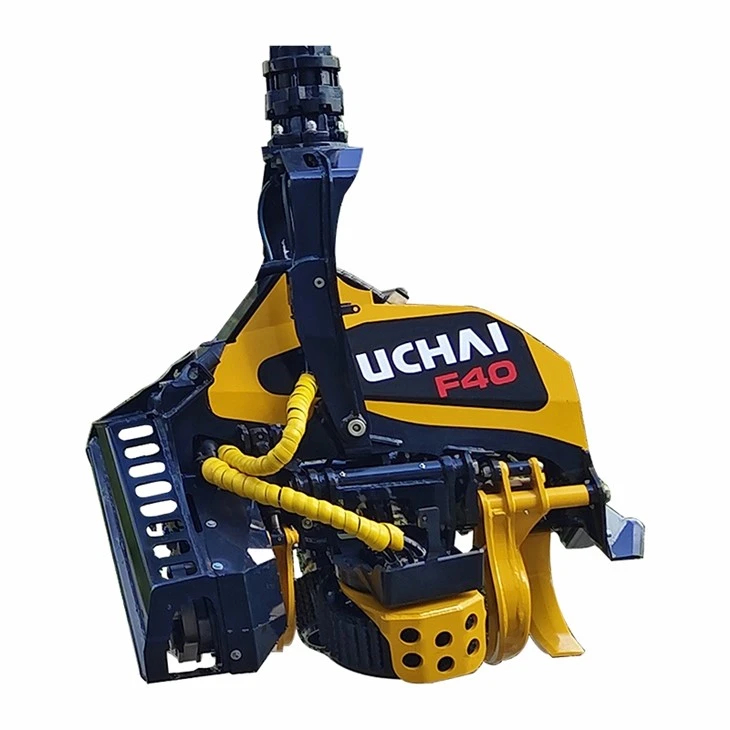

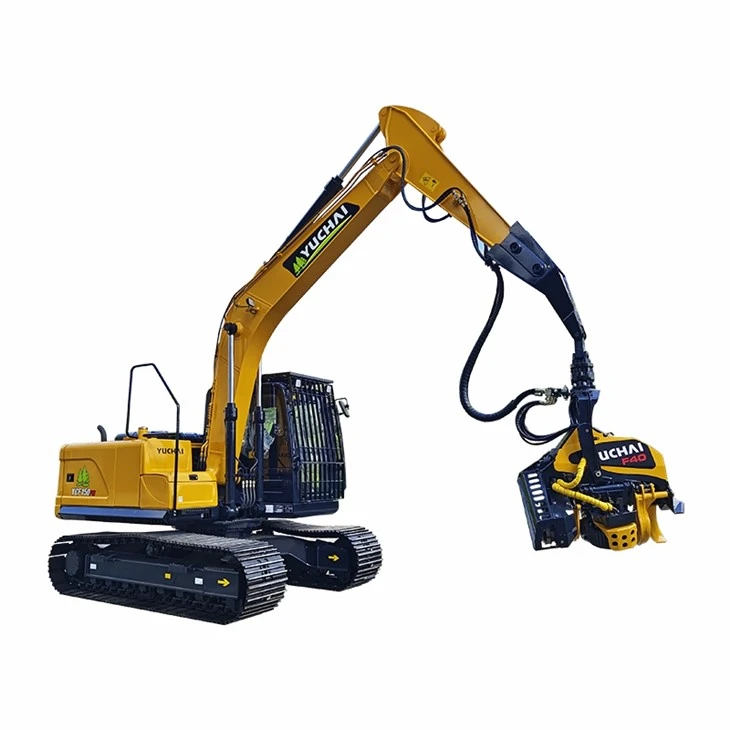

Yuchai F40 harvester head is a multi-functional forestcutting equipment. Harvester head is suitable for treeswith a diameter of less than 400mm, and is equippedwith 5 knives and 3 rollers. This machine has betterstability, higher yield, wide application range and easyoperation. The machine can be equipped with anexcavator of 8-15 tons.
Performance Parameters
|
Chain saw |
||
|
Chainsaw maximum cutting diameter |
mm |
400 |
|
Guide bar length |
mm |
508(20 in) |
|
Chain pitch |
mm |
0.404 |
|
Capacity of chain oil tank bar |
L |
3.4 |
|
Feeding |
||
|
Rollers quantity |
3 |
|
|
Rollers diameter |
mm |
371 |
|
Max. opening of rollers |
mm |
400 |
|
Max. feed force |
KN |
16 |
|
Max. feed speed |
m/s |
0~4.1 |
|
Delimbing knife |
||
|
Knives qty |
2+2+1 |
|
|
Diameter tip-to-tip |
mm |
330 |
|
Front knives max. opening |
mm |
480 |
|
Rear knives max. opening |
mm |
510 |
|
Hydraulic requirement |
||
|
Operating hydraulic |
MPa |
25 |
|
Flow required |
L/min |
150~180 |
|
Power required |
KW |
40~60 |
|
Operating vdtage |
V |
24 |
|
Control system |
YUCHAI |
|
|
Application |
||
|
For Excavator |
T |
8~15 |
|
Technical specification |
||
|
Width(head closed/head open) |
mm |
870/1215 |
|
Length |
mm |
1290 |
|
Height |
mm |
1263 |
|
Weight |
kg |
680 |
