Yuchai F60 Harvester Head
1.Multifunction
2.High-efficiency
3.Strong power
4.Low consumption
5.Easy operation
6.Simply maintenance

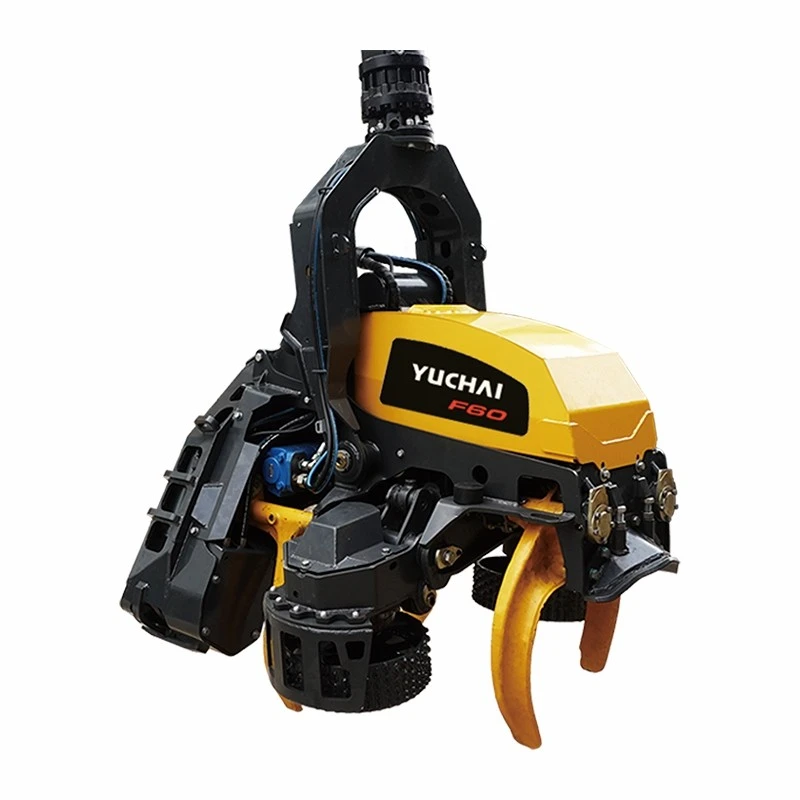

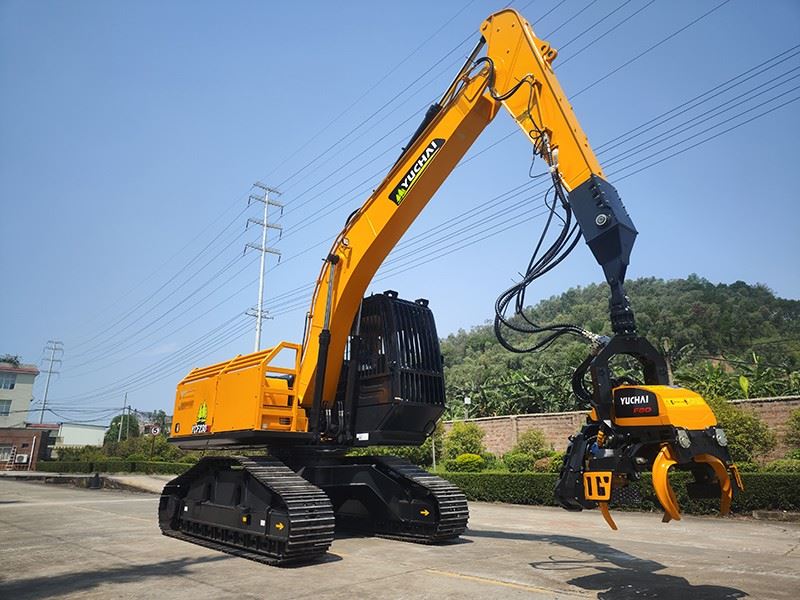

Yuchai F60 harvester head is a multi-functionalforest cutting equipment. Harvester head is suitablefor trees with a diameter of less than 600mm, and isequipped with 5 knives and 3 rollers. This machinehas better stability, higher yield, wide applicationrange and easy operation. The machine can beequipped with an excavator of 12-28 tons.
Performance Parameters
|
Chain saw |
||
|
Chainsaw maximum cutting diameter |
mm |
640 |
|
Guide bar length |
mm |
750 (29.53 in) |
|
Chain pitch |
mm |
0.404 |
|
Capacity of chain oil tank bar |
L |
8 |
|
Feeding |
||
|
Rollers quantity |
3 |
|
|
Rollers diameter |
mm |
400 |
|
Max. opening of rollers |
mm |
600 |
|
Max. feed force |
KN |
25 |
|
Max. feed speed |
m/s |
0~6 |
|
Delimbing knife |
||
|
Knives qty |
2+2+1 |
|
|
Diameter tip-to-tip |
mm |
400 |
|
Front knives max. opening |
mm |
640 |
|
Rear knives max. opening |
mm |
650 |
|
Hydraulic requirement |
||
|
Operating hydraulic |
MPa |
28 |
|
Flow required |
L/min |
200~250 |
|
Power required |
KW |
85~130 |
|
Operating vdtage |
V |
24 |
|
Control system |
YUCHAI |
|
|
Application |
||
|
For Excavator |
T |
12~28 |
|
Technical specification |
||
|
Width(head closed/head open) |
mm |
1500 |
|
Length |
mm |
1445 |
|
Height |
mm |
1530 |
|
Weight |
kg |
1050 |
