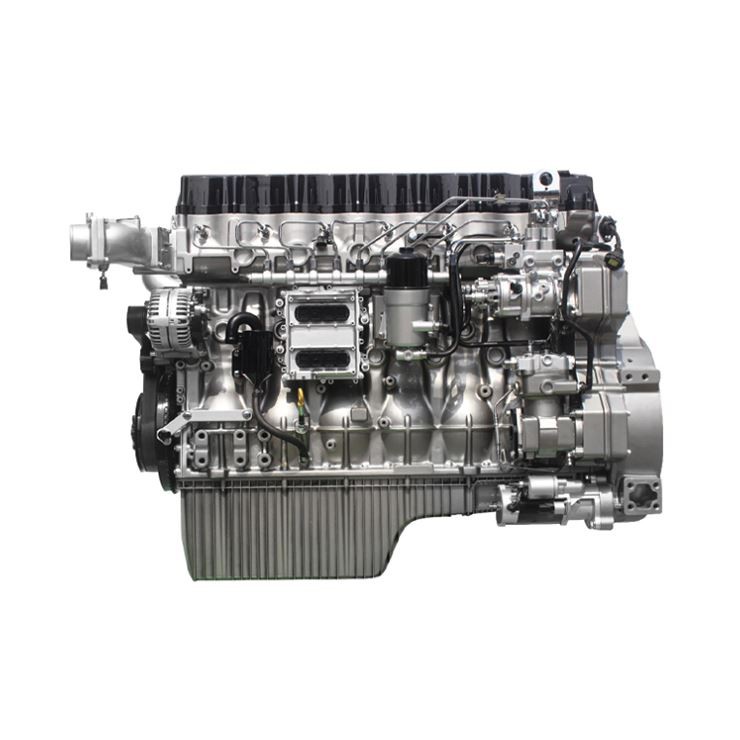

YCK16 Agricultural Machinery Engine
YCK16
Diesel engine
775Ps power coverage.
Applicable models: mining vehicles, excavators, air compressors/drilling RIGS, etc.
High comfort - High efficiency fan, noise reduction gear, multi-wedge belt and other applications, NVH greatly improved.
High reliability - overhead camshaft, high power free butterfly valve cylinder braking, safe and reliable.
High reliability - the body is strong and reliable, and the explosion pressure can reach 22MPa.
High reliability - With Top-Down efficient counter-flow cooling technology, the cylinder head is more reliable
High economy - Bosch 200MPa fuel system for lower fuel consumption.
High adaptability - large capacity oil pan, meet the heeling 35°, trim 35° terrain work.
Technical parameter
|
Machine type |
YCK16775-T300 |
||
|
Number of cylinders - Cylinder diameter × stroke (mm) |
6-141×170 |
||
|
Displacement L |
15.93 |
||
|
Number of valves per cylinder |
4 |
||
|
Intake mode |
Supercharged intercooling |
||
|
Rated power/speed kW/r/min |
570/1900 |
||
|
Maximum torque/speed N.m/r/min |
3200/1400 |
||
|
Low torque/RPM |
≥1800/800 |
||
|
Emission level |
GB20891-2014 |
GB20891-2014 |
GB20891-2014 |
|
Emission technology route |
CR |
CR |
CR |
|
External characteristics Minimum fuel consumption g/kW.h |
≤190 |
||
|
Oil change cycle |
500 hours |
||
