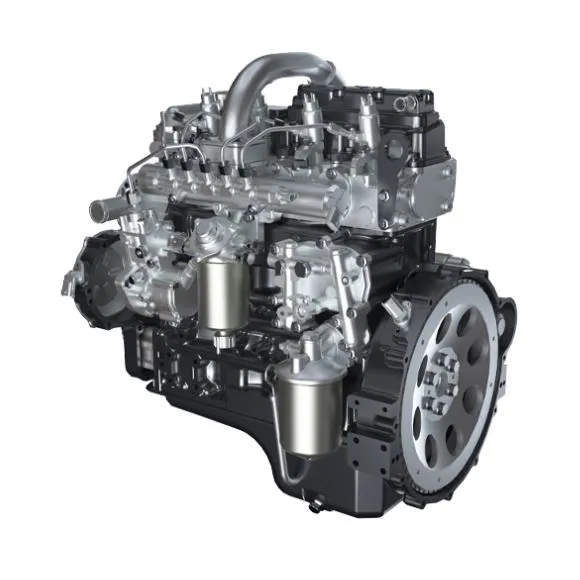

YCA07 Agricultural Machinery Engine
YCA07
Diesel engine
125 ~ 300Ps power coverage range
Applicable model: harvester, tractor
Technical parameter
|
Machine type |
YCA07P260-T400 |
YCA07260-T480 |
YCA07K300-T400 |
|
Number of cylinders - Cylinder diameter × stroke (mm) |
6-108×125 |
6-108×125 |
6-110×132 |
|
Displacement L |
6.9 |
6.9 |
7.5 |
|
Number of valves per cylinder |
2 |
||
|
Intake mode |
Vertical in-line water-cooled four-stroke, supercharged and intercooled |
||
|
Rated power kW |
92-191 |
92-191 |
191-221 |
|
Rated speed r/min |
2200/2300 |
2200/2300 |
2200/2300 |
|
Maximum torque N·m |
1080 |
1050 |
1200 |
|
Maximum torque speed r/min |
1300-1600 |
1300-1600 |
1300-1600 |
|
Emission technology route |
CR+DOC+DPF+SCR |
CR+EGR+DOC+DPF |
CR+DOC+DPF+SCR |
|
B10 Life h |
≥20000 |
||
|
Net mass kg |
≤780 |
||
|
Length × width × height mm |
1200×675×1095 |
||
