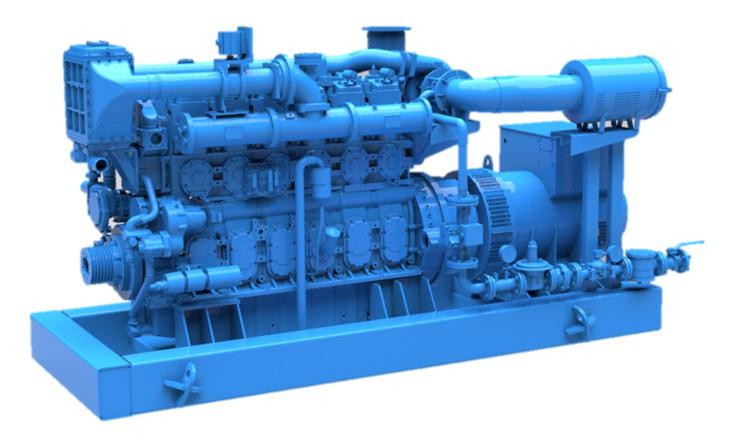

YC6CG-600N5HC
Rated power：600 kW
Gas source: natural gas(CH4≥85%)
Voltage/frequency：10.5k V/50 Hz
Product introduction
High Reliability
Based on the design and production platform of mature products, Yuchai independently developed and manufactured high-temperature wear-resistant materials suitable for gas generator sets, as well as high-strength main components such as cylinder blocks, cylinder heads, camshafts, crankshafts, and common bases, greatly improving the reliability and durability of the products.
01
High Efficiency and Environmental Friendliness
Adopting mature technologies such as lean combustion, capacitive high-energy ignition module, Yuchai patented combustion chamber, oxygen sensor closed-loop control, etc., to ensure efficient and clean combustion of gas, precise control of air-fuel ratio, and improve performance consistency and stability while ensuring low emissions.
The gas engine adopts Yuchai's patented rear gear chamber point line meshing gear technology and four valve technology, which effectively reduces the mechanical noise, exhaust noise, and exhaust temperature of the transmission system, and is friendly to operators and the natural environment.
02
Low Maintenance Costs
By adopting Yuchai's patented cylinder liner, piston ring, and valve sealing technology, the consumption rate of lubricating oil is significantly reduced, and the replacement cycle of lubricating oil exceeds 1000 hours. Gas generator sets are equipped with universal and easy to maintain components, significantly reducing maintenance costs for power generation equipment.
03
Safety Protection
Adopting an independent and mature unit control system, the control system is stable, and each cylinder is equipped with knock monitoring to monitor the overall status in real time. The configuration of explosion-proof valves in the crankcase and intake pipe ensures the safety of the entire machine.
04
Alternator
The generator has the advantages of high power generation efficiency, low temperature rise, low waveform distortion rate, good dynamic performance, and stable AVR parallel operation. It has first-class reliability and durability, and can meet the requirements of various harsh environments.
05
Standard configuration range
|
NO. |
Item name |
Unit |
Quantity |
NO. |
Item name |
Unit |
Quantity |
|
1 |
Gas engine | Tower |
1 |
6 |
Local control cabinet | Piece |
1 |
|
2 |
Valve group | Set |
1 |
7 |
Silencer, corrugated pipe | Set |
1 |
|
3 |
Generator | Piece |
1 |
8 |
Storage battery | Set |
1 |
|
4 |
Common base | Piece |
1 |
9 |
Random tool |
Set |
1 |
| 5 | Flexible coupling | Piece | 1 | 10 | Random data | Set | 1 |
| 1. The radiator components of the water tank are optional. 2. Random materials include: user manual, external installation diagram, technical parameter table, motor manual, electrical cabinet instructions, wiring schematic, and three guarantee service manual. |
|||||||
Control function
|
Basic function |
Power switch, start, stop, emergency stop, on/off control, etc. |
|
Display function |
Phase voltage, line voltage, current, frequency, phase sequence, active power, reactive power, apparent power, power factor, cumulative generated electricity, speed, oil pressure, cooling water temperature, unit operating time, cumulative startup times, battery voltage, etc. |
|
Protection function |
Overspeed, underspeed, overvoltage, undervoltage, over frequency, under frequency, overcurrent, over power, low oil pressure, high water temperature, low battery voltage, charging failure, etc. |
Unit size&weight
| Unit net size & net weight | Long/A | Width/B | High/C | Weight |
|
4107mm
|
1633mm
|
2111mm
|
8890kg
|
Note: The above data and information will be updated with product upgrades, and Yuchai reserves the right to make technical changes.
Hot Tags: yc6cg-600n5hc silent gas generator set, China yc6cg-600n5hc silent gas generator set manufacturers, suppliers, factory, after treatment system, Valve Bridge, EUP Housing, 120KW 60HZ 380V Silent Diesel Generator Set, Water Tank, lide lubricating oil
| Generator Set Parameters | |
| Model |
YC6CG-600N5HC
|
| Rated power |
600kW /750kVA
|
| Rated speed |
1500r/min
|
| Rated voltage |
10.5kV
|
| Rated current |
41.2A
|
| Frequency |
50HZ |
| PF | 0.8(lagging) |
| Generator efficiency |
≥33.2%
|
| Fuel consumption rate under full load |
203.5m³/h
|
| Noise |
≤110dB(A)@1m
|
| Starting method | Electric start |
| Weight |
8890kg
|
| Engine Parameters | |
| Model |
YC6C1020N-D30
|
| Rated power |
680kW
|
| Rated speed |
1500r/min |
| Cylinders |
6 |
| Type | In line, four stroke, water-cooled |
| Bore× stroke(mm) |
200mm×210mm
|
| Displacement(L) |
39.5L
|
| Compression ratio |
11.5:1
|
| Control system | ECU electronic control |
| Oil consumption rate |
≤0.3g/kWh
|
| Coolant capacity (including radiator) |
120L
|
| Oil capacity |
160L
|
| Overhaul period |
40000h
|
| Generator Parameters | |
| Model |
YC-600-4H
|
| Connection | Three phase four wire system (Y-shaped) |
| Pressure regulation method |
AVR
|
| Protection grade |
IP21
|
| Insulation level |
F
|
| Thermal Equilibrium Parameters | |
| Cylinder liner coolant heat (± 8%) |
425kW
|
| Engine oil cooler coolant heat (± 8%) |
115kW
|
| Total heat of coolant in high-temperature cooling system (± 8%) |
540kW
|
| Heat of intercooler coolant (± 8%) |
166kW
|
| Total heat of coolant in low-temperature cooling system (± 8%) |
166 kW
|
| Exhaust heat (exhaust to 120 ℃) (± 8%) |
355kW
|
| Power loss of auxiliary equipment |
20kW
|
| Total radiant heat (± 8%) |
65kW
|
| Cooling Parameters | |
| High temperature water circulation water flow rate |
52.2 m³/h
|
| High temperature circulating water inlet temperature (± 2%) |
77.1℃
|
| High temperature circulating water outlet temperature (± 2%) |
86℃
|
| Low temperature water circulation water flow rate |
52.2 m³/h
|
| Low temperature inlet water temperature (± 2%) |
40℃
|
| Low temperature effluent temperature (± 2%) |
42.4℃
|
| Inlet and Exhaust Parameters | |
| Air intake volume |
3246kg/h
|
| Gas intake volume |
132 kg/h
|
| Exhaust volume |
3378 kg/h
|
| Rear row temperature of vortex (± 5%) |
460℃
|
| Test Conditions | |
| Gas calorific value |
9.1kWh/m³
|
| Methane volume content |
≥95%
|
| Gas temperature |
10~40℃
|
| Gas humidity |
＜60%
|
| Gas intake pressure |
10~30kPa
|
| Air intake negative pressure |
＞-3kPa
|
| Exhaust back pressure |
＜5kPa
|
| Absolute atmospheric pressure |
101.32kPa
|
| Environmental temperature |
25℃
|
| Relative humidity |
≤30%
|
| Altitude |
≤1000m
|
| Note: All data of the gas generator set were measured in the above testing environment. | |
