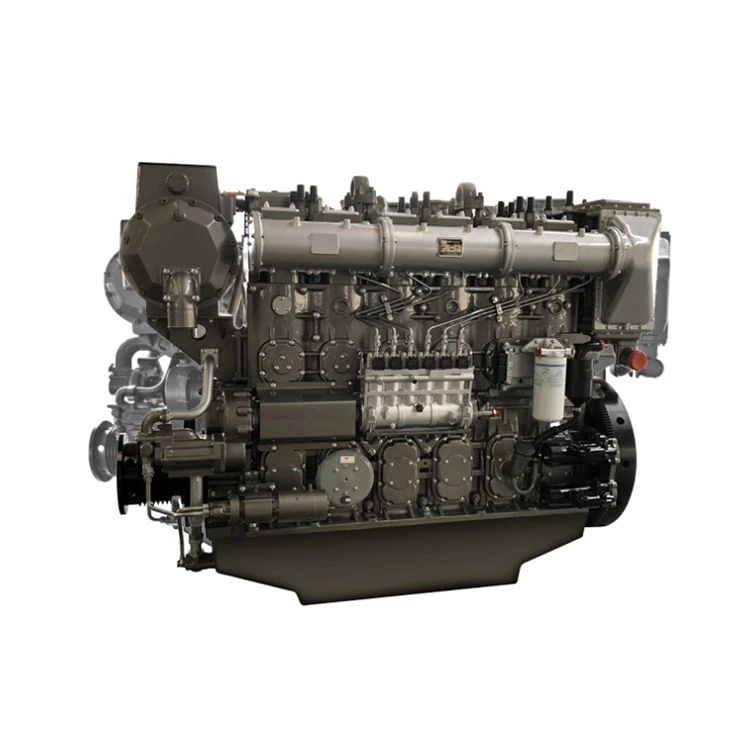

YC6CL Marine main engine
YC6CL
Marine main engine
706kW~882kW power coverage range
Applicable ship type: transport ships, fishing vessels and other ship engineering equipment.
Technical parameter
|
item |
YC6CL series Marine diesel engine |
||
|
Machine type |
YC6CL960L-C23 |
YC6CL1035L-C23 |
YC6CL1135L-C20 |
|
Number of cylinders - Cylinder diameter × Travel (mm) |
6-200×290 |
||
|
Displacement L |
54.6 |
||
|
Number of valves per cylinder |
4 |
||
|
Intake mode |
Supercharged intercooling |
||
|
Rated power/speed (kW (Ps) /r/min) |
706(960)/1000 |
760(1035)/1000 |
835(1135)/1000 |
|
Overload power/speed (kW (Ps) /r/min) |
776.6(1060)/1032 |
836(1140)/1032 |
918.5(1250)/1032 |
|
External characteristics Minimum fuel consumption g/kW.h |
≤195 |
||
|
certificate |
ZC,CCS,EIAPP, National Emission Standard II |
||
|
Overall dimensions (length × Width × Height) (mm) |
2496×1150×2172 |
||
|
Net weight (kg) |
5380 |
||
