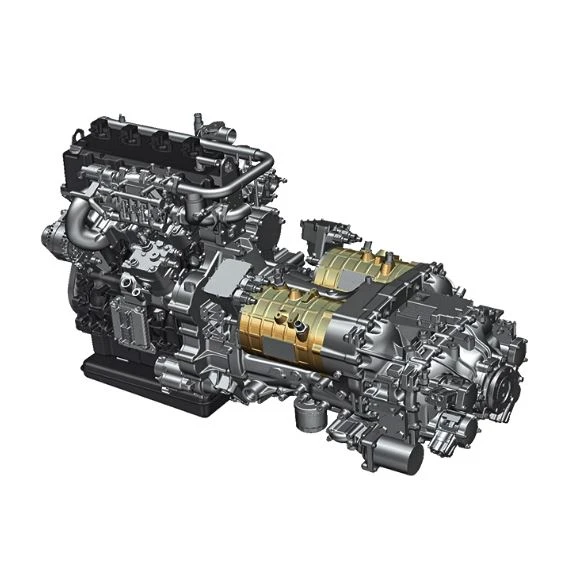

YCPD230-1 Clean-energy Engine
YCPD230-1
eCVT power-split hybrid system
140-300 power coverage range.
Applicable model: truck, special vehicle; Buses, road buses.
Technical parameter
|
Assembly parameter |
Model number |
YCPD230-1 |
|
|
Motor parameter |
Maximum output torque (N·m) |
7000 |
|
|
Overall dimensions (L × W × H mm) |
L1768×W790×H1013 |
||
|
System weight (kg) |
850 |
||
|
E1/E2 Motor Rated/Peak power (kW) |
115/157 |
||
|
E1/E2 Motor rated/Peak torque (N·m) |
220/300 |
||
|
E1/E2 motor rated/Maximum speed (r/min) |
5000/15000 |
||
|
Voltage platform (V) |
600 |
||
|
Cooling mode |
water-cooling |
||
|
Engine parameter |
Model number |
YCK05190-60 |
YCK05240-60 |
|
Displacement (L) |
5.132 |
||
|
Rated power/speed (kW/r/min) |
140/2200 |
176/2200 |
|
|
Maximum torque/speed (N•m/r/min) |
700/1200-17 |
900/1200-1700 |
|
|
Maximum no-load speed (rpm) |
2460 |
||
|
Minimum fuel consumption (g/kWh) |
≤191 |
||
|
Emission standard |
China Ⅵ |
||
|
Overall dimensions (L x W x H mm) |
L890×W790×H1013 |
||
