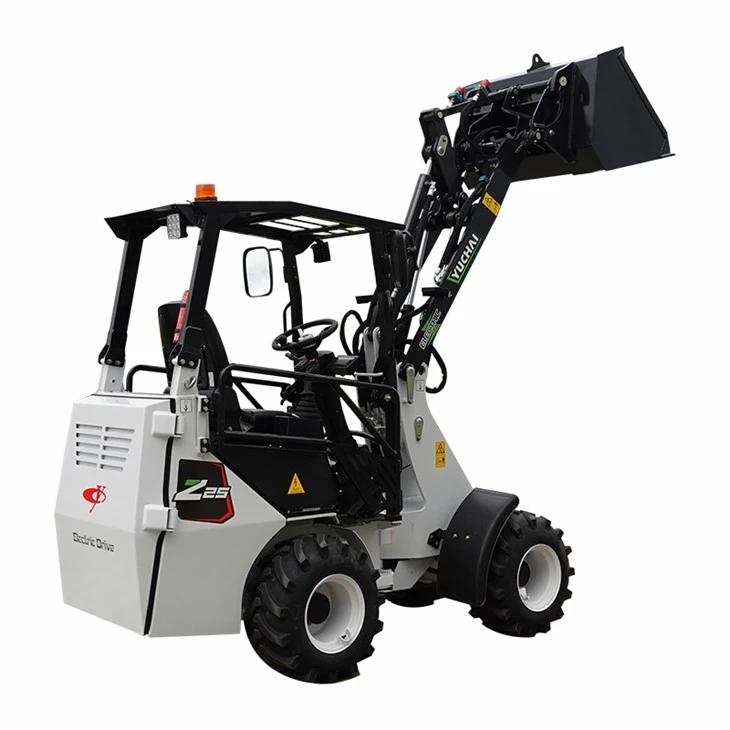

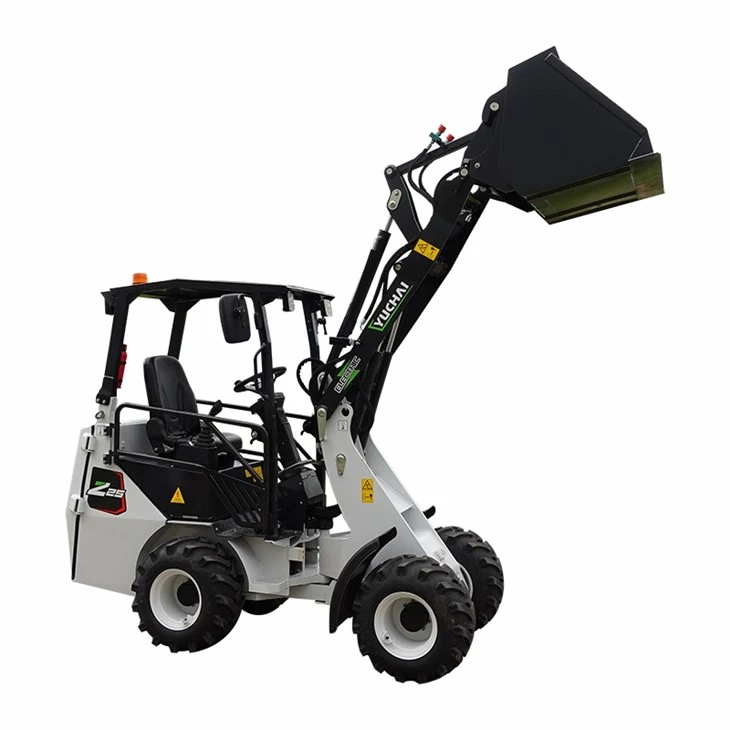

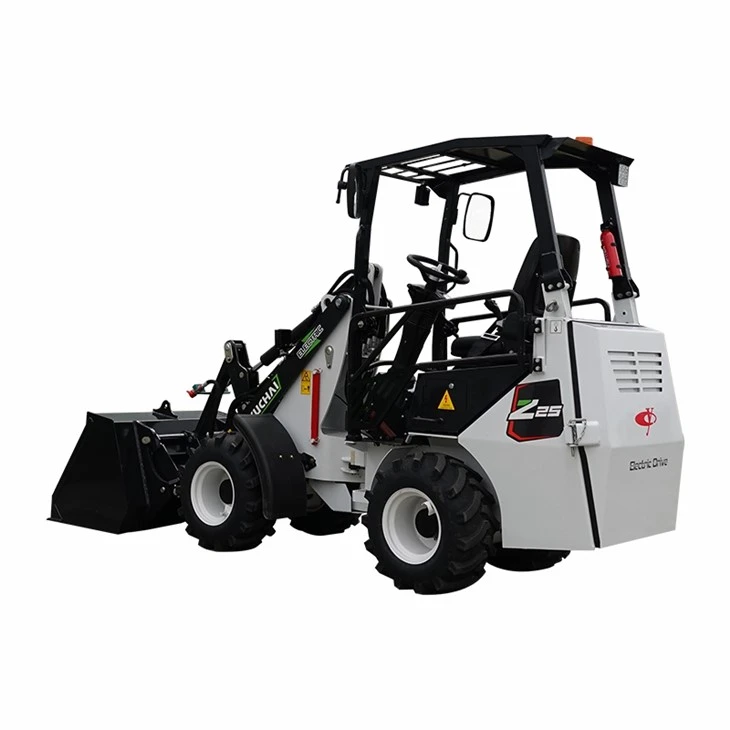

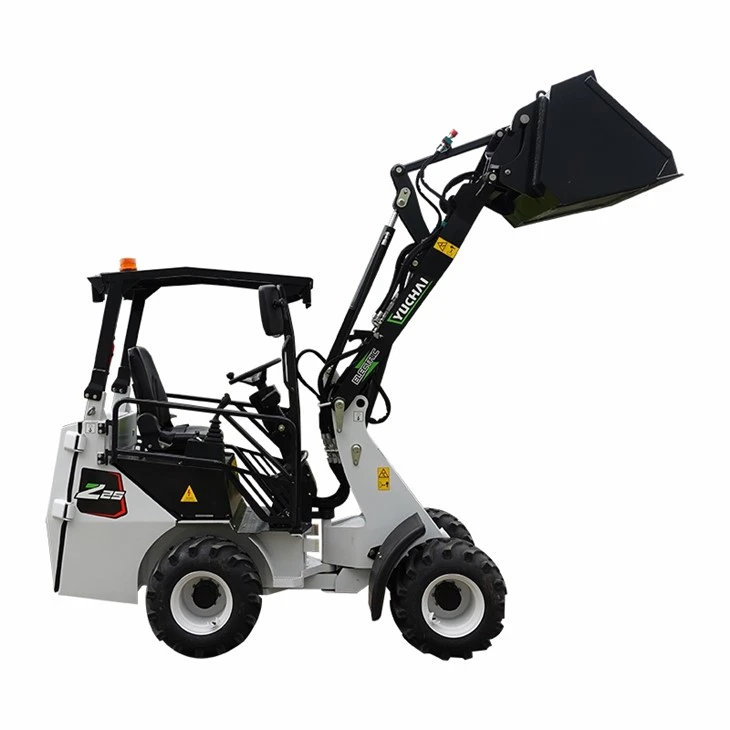

YC Z25 Electric Small Articulated Loaders
1.Saving energy cost by 91%
2.0 maintenance during 2000 hours
3.Low failure rate
4.Battery capacity increased by 40%
5.Wheel motor driving
6.AUTO HOLDTraction force increased by 18.8%
7.Operation stability increased by 7.5%
8.Battery life increased by 50%
9.360°rotation function in place
Z25 Performance Parameters
|
Basic Parameter |
||
|
Machine Weight |
kg |
1880 |
|
Rated Operating Load |
kg |
800 |
|
Max.traveling speed |
km/h |
0-12 |
|
Hydraulic System |
||
|
Pure electric control |
||
|
Working pressure |
Mpa |
18 |
|
Battery System battery pack/secondary |
battery pack/secondary |
|
|
Battery Lithium-ron |
Lithium-ron |
|
|
Battery voltage |
v |
96 |
|
Battery capacity (gross) |
kWh |
21 |
|
Fastest charging time (from 20% to 80%, supported by fast charger) |
h |
1 |
|
Standard endurance * |
h |
≥ 6 |
|
Operating voltage |
v |
12 |
|
Kipplast mit Schaufel - Maschinegerade, Hubgerust horizontal |
kg |
800 |
|
Kipplast mit Schaufel - Maschinegeknickt,Hubgerust horizontal |
kg |
605 |
|
Kipplast mit Palettengabel -Maschine gerade, Hubgerusthorizontal |
kg |
520 |
|
Kipplast mit Palettengabel -Maschine geknickt, Hubgerusthorizontal |
kg |
395 |
|
Drive System |
||
|
Wheel motor driving |
||
|
AUTO HOLD |
||
|
Tank capacity for hydraulic oil |
L |
8 |
|
Travel speeds increase/reduction |
2 |
|
|
Travel speed Standard |
km/h |
0-12 |
|
Max. hydraulic discharge volume |
L/min |
36 |
|
Max. working pressure |
bar |
180 bar |
|
Quick coupler type |
hydraulic |
|
|
Lifting cylinder |
2 |
|
|
Tipping cylinder |
1 |
|
|
Steering type hydraulic articulated pendulum steering |
hydraulic articulated pendulum steering |
|
|
Steering cylinder |
1 |
|
|
Oscillating angle ±58 degree |
±58 degree |
|
|
Parking brake |
disc brake |
|
|
A Overall Length |
mm |
3850 |
|
B Overall Length(Without bucket) |
mm |
3000 |
|
C Bucket pivot point (to center of axle) |
mm |
461 |
|
D Wheel base |
mm |
1345 |
|
E Rear Overhang |
mm |
904 |
|
F Overall Height |
mm |
2138 |
|
H Seat Height |
mm |
1178 |
|
J Overall Operating Height |
mm |
3547 |
|
K Height of Bucket Pivot (Max.) |
mm |
2781 |
|
L Loading-Over Height |
mm |
2518 |
|
M Dumping Height |
mm |
2007 |
|
N Bucket to Front Wheel Distance (Dumping) |
mm |
447 |
|
O Digging Depth |
mm |
55 |
|
P Overall Width (Wide Tire/Narrow Tire) |
mm |
1106/930 |
|
Q Track Width (Wide Tire/Narrow Tire) |
mm |
801/740 |
|
S Ground Clearance |
mm |
198 |
|
T Min. Radius External |
mm |
2268 |
|
U Radius at the Outer edge |
mm |
1796 |
|
V Inside Turning Radius |
mm |
653 |
|
W Inclination Angle |
° |
58 |
|
X Rollback Angle at Max.Lifting Height |
° |
57 |
|
Y Dumping Angle (Max.) |
° |
35 |
|
Z Rollback Angle (on the ground) |
° |
38 |
